A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 372

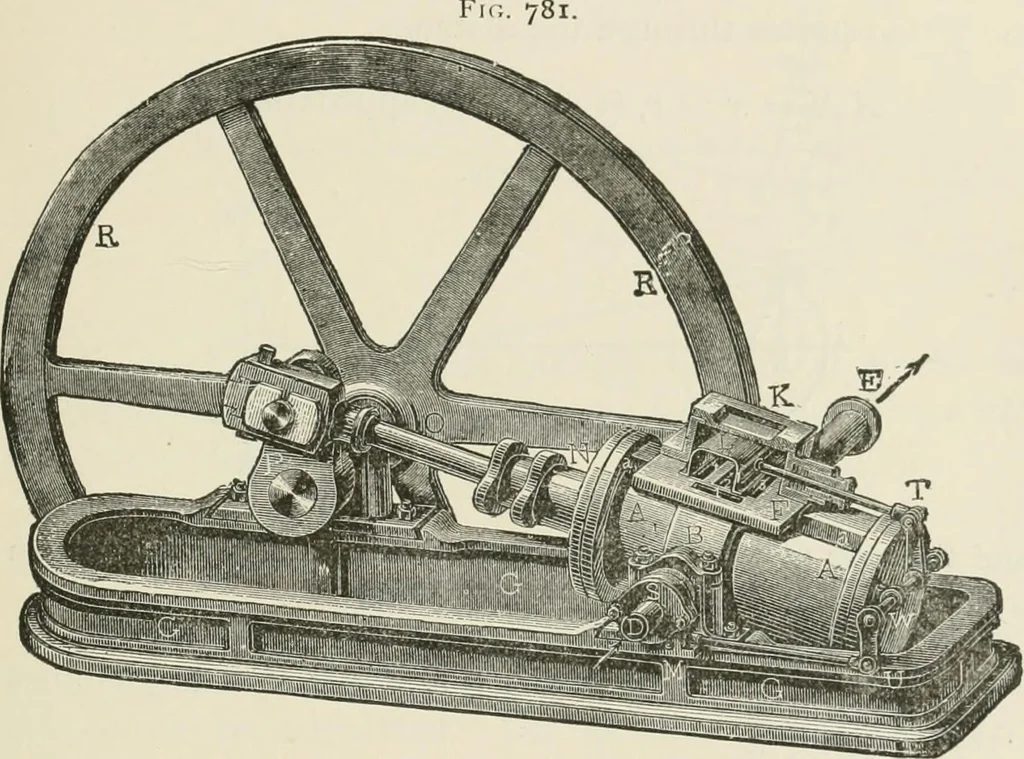

te with thehollow trunnions and pass through stuffing boxes, as S.The foot plate F of the steam chamber K has four ports, ofwhich the forward one (l) communicates through B and Swith the steam pipe, and the middle one (2) in similar man- § 477.] THE STEAM ENGINE. 359 ner with the exhaust pii)c E.… … the slide Iepresented in the figure, the steam eners through(i), and passes through (3) and a into the cylinder, while theexhaust steam passes through a^ and (4) into the steamchamber, and from thence through (2) and E. In the oppo-site position of the shde, (4) is uncovered and (3) is withinthe…
