A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 373

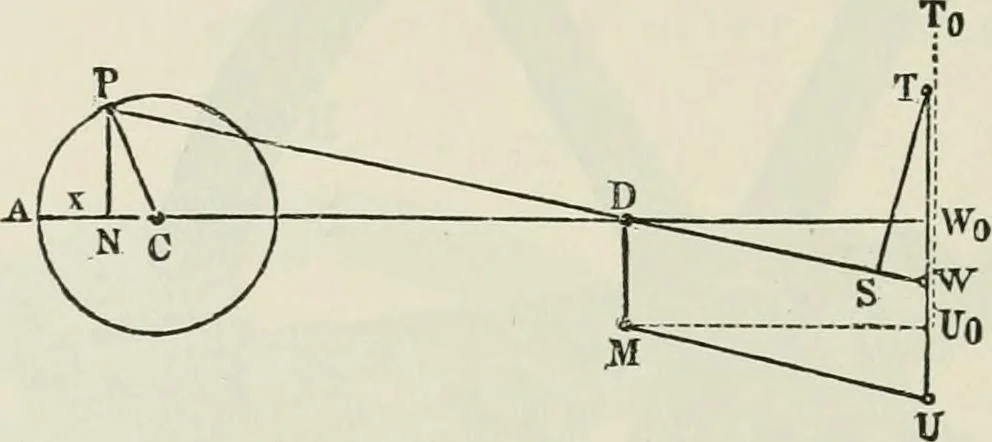

ns of the crankU W, and thus turns the crank IV T and moves the slide 360 HEA T, STEAM, AND STEAM ENGINES. L§ 477. back and forth. To illustrate this, we have the geometricalrepresentation of Fig. 782. C is the axis of the fly-wheel,D the axis of oscillation of the cylinder, W^the shaft for… … and the axis of the piston rod takes the inclination a givenby the formula, NP sin. oi = DP or approximately, sin. oc ?\ sill, ft where d is the distance C P oi the centres of crank andcylinder. If Mis vertically below D, and WU equals DM,then D M U W is in every position of the cylinder a…
Mechanics, Applied · Mechanical engineering
