A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 374

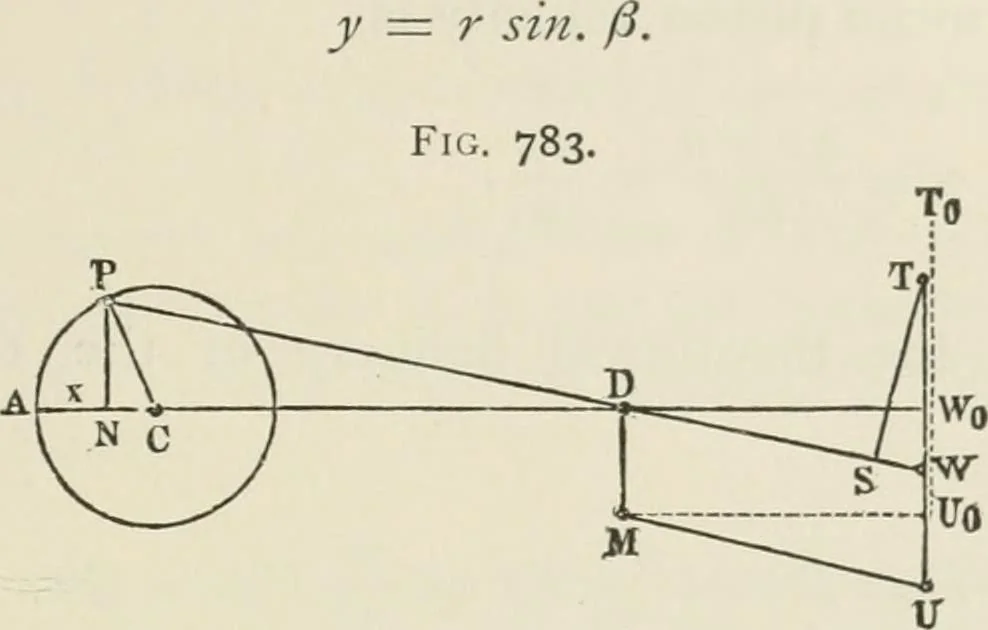

t where d is the distance C P oi the centres of crank andcylinder. If Mis vertically below D, and WU equals DM,then D M U W is in every position of the cylinder a paral-lelogram, and, at the end of the stroke, a rectangle, sincethen the axis of the cylinder is horizontal. \i a denotes thelength W T… … These formulae correspond entirely with those found forthe valve motion with eccentric (see § 459), when the angleof advance is zero. § 478.—Work of Steam \iithont Expansion.—Tn the following we shall indicate how the performance of a steamengine can be calculated. Let us first take the…
Mechanics, Applied · Mechanical engineering
