A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 401

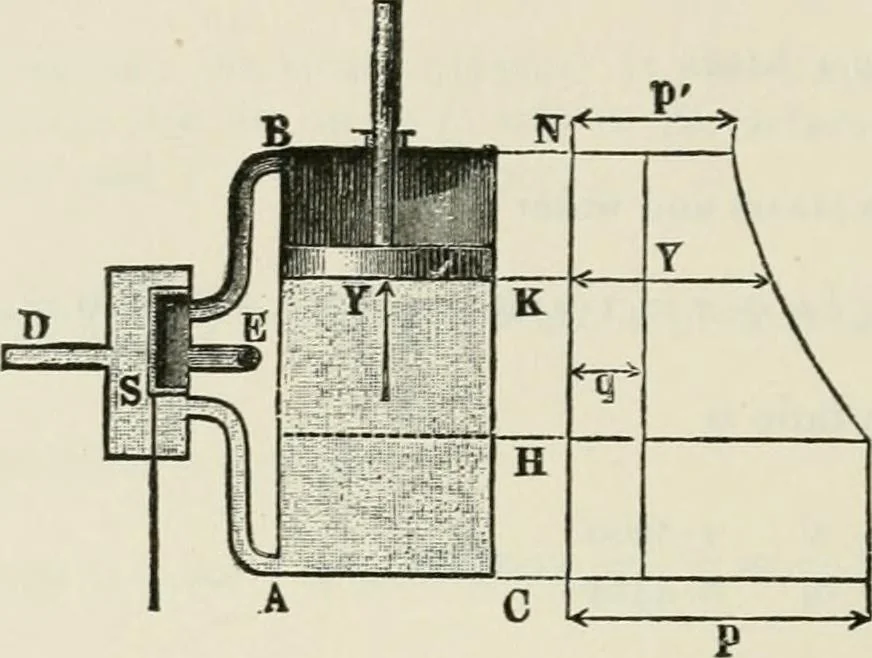

312, and the expansion ratio. i-3Si2 = 3-4I9- 0-4037 § 487.—Tlieoretical Effect of a Steam Engine accord-ing to tlie HeclBaMicai Theory of Heat.—In the steam en-g-ine C A B D, Fig. 786, let s be the piston stroke C H,during full pressure /, .y, the entire stroke CN, duringwhich the pressure becomes… … piston during- the entire stroke s^. During the distance s,the pressure upon the piston, whose area is /% is /^ = Fp,and the work is L^ = Fps = Fsp =z Vp = Mp = pMp, V.where Fis the volume of steam used, and AI = Vy = — is P the weight of steam used. When the steam is cut off by the slide 5 and the…
