Handbook for the use of electricians in the operation and care of electrical machinery and apparatus of the U.S. seacoast defenses (1902)
United States. War Dept, Anderson, George Lucius, 1849-1934 · Washington, Govt. Print. Off. · leaf 54

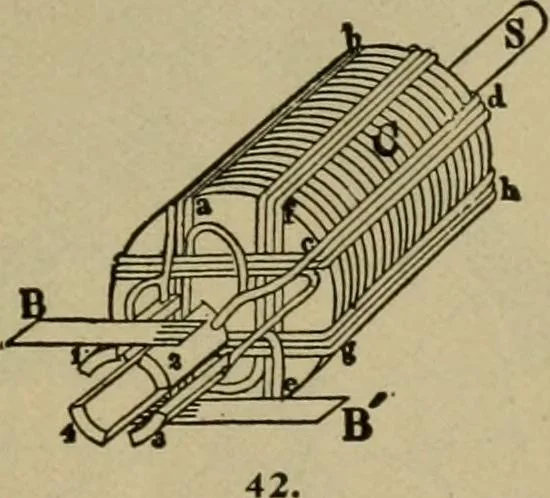

1. Fig. 41 is a 2-pole, 4-coil, ring, vsdnd-ing around core of annealed soft ironwires or washers. Two circuits be-tween brushes. Nearly all cores, ringor drum, are now made from soft-ironsheet in washer shape. Fig. 42 is a 2-pole, 4-coil, drum, lapwinding over annealed soft-iron wash-ers starting…
Electric machinery · Searchlights · Coast defenses
