A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)

Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 423

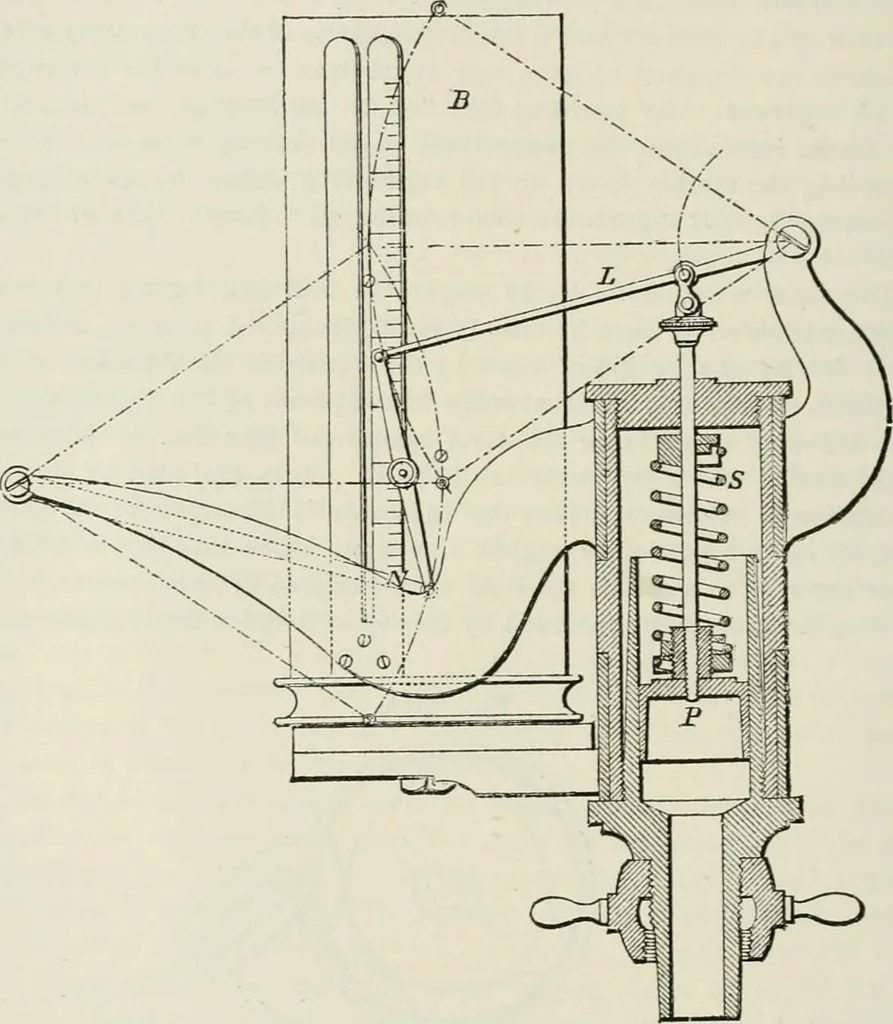

An illustration from A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc., 1878, leaf 423 — the other end, and to a second lever, N, forming a parallel motion, toguide it in a straight line. As ordinarily built, the indicator piston has a 4IO HEAT, STEAM, AND S7EAM ENGINES. [§ 492- cross-section of half a square inch, and the pencil moves four times as far asthe piston, the latter having… … hnrrel B, nnd held there by spring clips. Prepared paper, upon which ablack mark can be made with a metallic point, is often used for taking dia-grams, a wire with a fine point being substituted for the pencil. The indicator patented by J. W. Thompson, 1875, the upper portion ofwhich is shown in…
