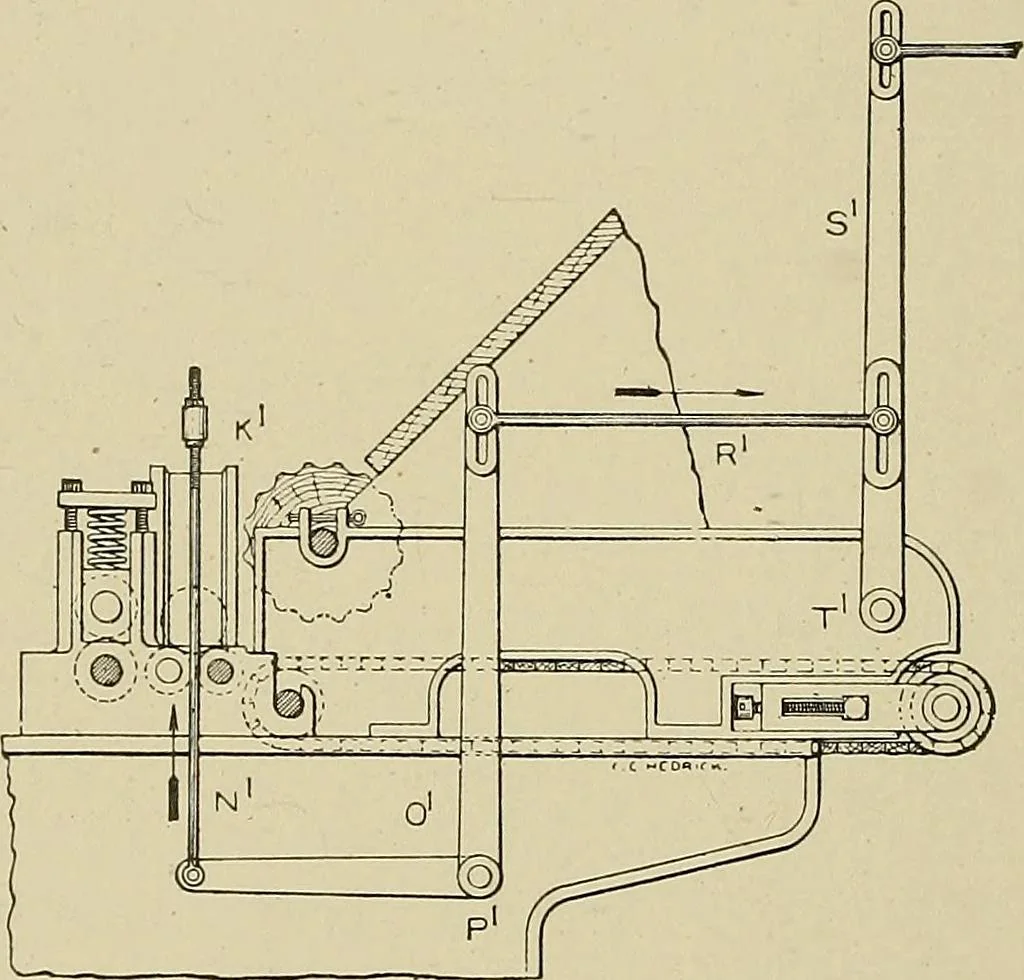

f the evener case is the evener lever, K.i,which is connected to the main saddle by the stem, L^. The ful-crum of the lever is iit M^ and the long end is connected to a rod,Ni. Fig. 35 is a side elevation showing the connections betweenthe evener lever and the cone-belt guide. It will be seen that… … Fig. 35. Elevation Showing Conuectious from Evener to Cone Belt. latter is a stud, Ti, which forms a fulcrum about which the leverturns and at the upper end is.connected the cone-belt guide, Wi.When .the evener roll is raised, by reason of an unusual thicknessof cotton going through, the evener…
