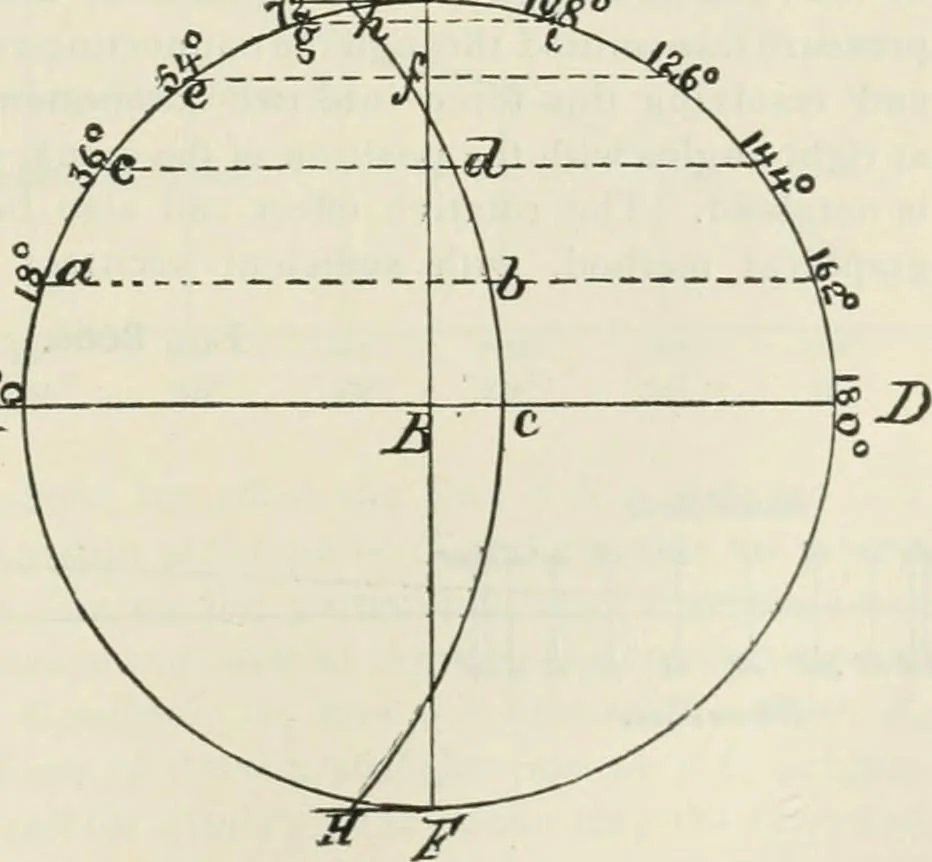

minislied at the com-mencement of the re-turn. By the aid ofa simple graphicalconstruction, the forcerequired for accelera-tion or given out dur- ~p a°cing retardation at anypoint of the stroke caneasily be found. Assuming the ratioof the length of theconnecting-rod to thelength of the crank tobe… … 424 HEAT, STEAM, AND STEAM ENGINES. [§495- A B, 2l.% a radius, describe a circle and draw a diameter, E F, perpendicular ABto A B. Make B c equal to , and on tangents to the circle at E and 7^ lay oflF distances, E G, F H, each equal to B c. Through the points G c H Axdivia circular arc, and…
