A manual of the mechanics of engineering and of the construction of machines. Designed as a text-book for technical schools and colleges, and for the use of engineers, architects, etc. (1878)
Weisbach, Julius Ludwig, 1806-1871, Du Bois, A. Jay (Augustus Jay), 1849-1915, Buel, Richard H. (Richard Hooker), b. 1842 · New York. J. Wiley & Sons, 1878- · leaf 442

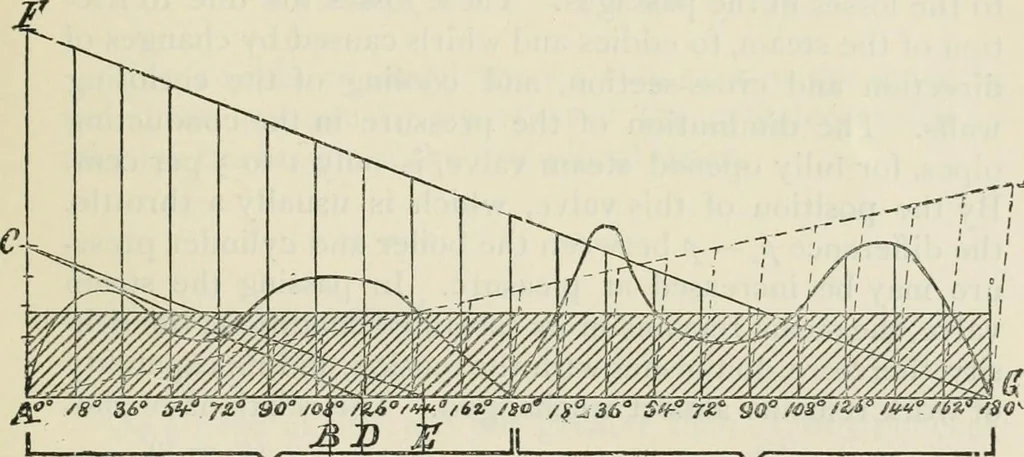

A G a distance £ D = ^ A C,and a distance BE = f .-/ C. Draw straight lines, CD, CE, make A />equal to CD, and from E draw a straight line EG parallel to CE, thus deter-mining A G the circumference of a circle whose diameter is A B. This con-struction is theoretically correct to within a… … every 18° of the revolution. Erect perpendiculars to A G at the severalpoints of division, and la} off on these perpendiculars distances representingthe pressures producing rotative effeci. as determined from diagrams similarto Figs. 8o6(, 806/, an 1 806;-. The points so fixed may then be…
