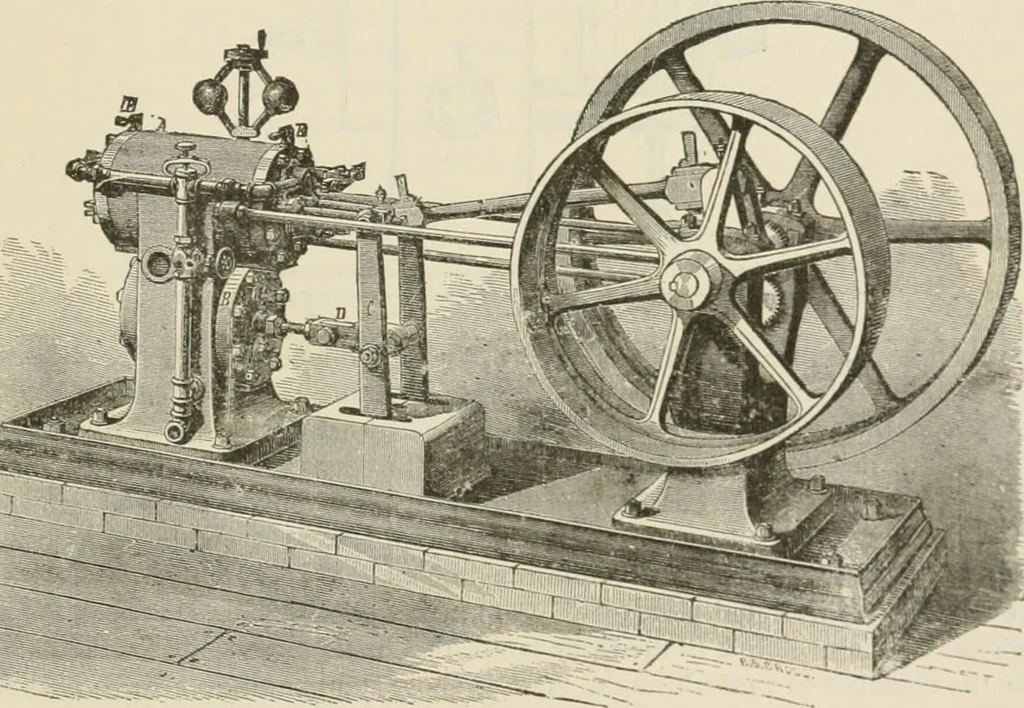

a^ communicates with x, and the gas below the piston isignited. CThe Brayton h\drocarbon engine, using tlie vapor from crude petro-leum, is represented in Figs. 817a and 817/, which, with the accompanyingdescription, were published in Engineering iox February l6th, 1877 : Fig. 8i7(;. … 546 HEAT, STEAM, AND STEAM ENGINES. [§519- In Fig. 817a, A is the working cylinder and B the air pump. Instead,however, of having a crosshead and slides, a parallel motion is provided lorthe piston as follows : Cis a lever, the lower end of which is a radial foot,the circle being struck off the…
