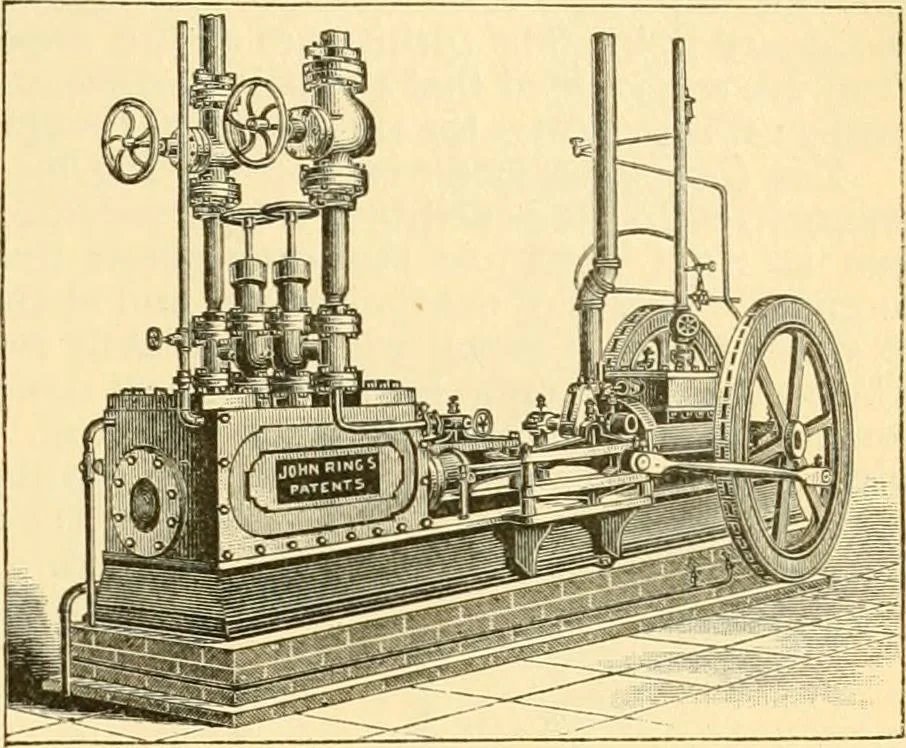

-whcels.avoid the wear and tear inevitable from the onlinary crank .■iiid lly-whcel system. Bya special arrangement, consisting of a chamber formed in the stulling-box, and a pipe or pipesleading from it to the suction side of the gas-cylinder, the pressure on the stuffing-box aroundthe piston-rod,… … Fig. 2.—Double-acting compressor. device dispenses with the use of water as a means of cooling the piston-rod, this being doneby a constant flow of oil through an oil-chamber built on the gland of the stuffing-box itself. A third improvement made by the inventor(John Ring, of St. Louis) of the…
