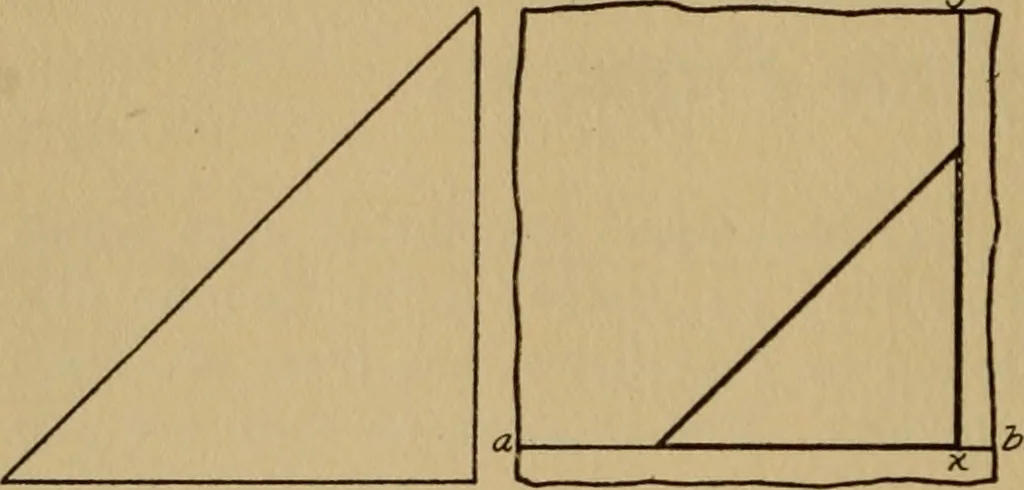

a right angle is formed inthe lower right-hand corner. This is always the first process.From this square corner and these lines, all measurementsshould be made. We have no further use for the triangle inthe present figure. Suppose that a six-inch square is to bedrawn. Measure from the corner x to… … ^ ■V, Fi^J6. Fig. J 7: Fig /6- o o 0 o Fi^. Id. We have a figure resembling 15, six iuches in width, andindefinite in length. Now measure from the point x along theline X J placing a dot at m which is six inches from x. Measurefrom the point k along the line k t, a distance of six inchesplacing a…
