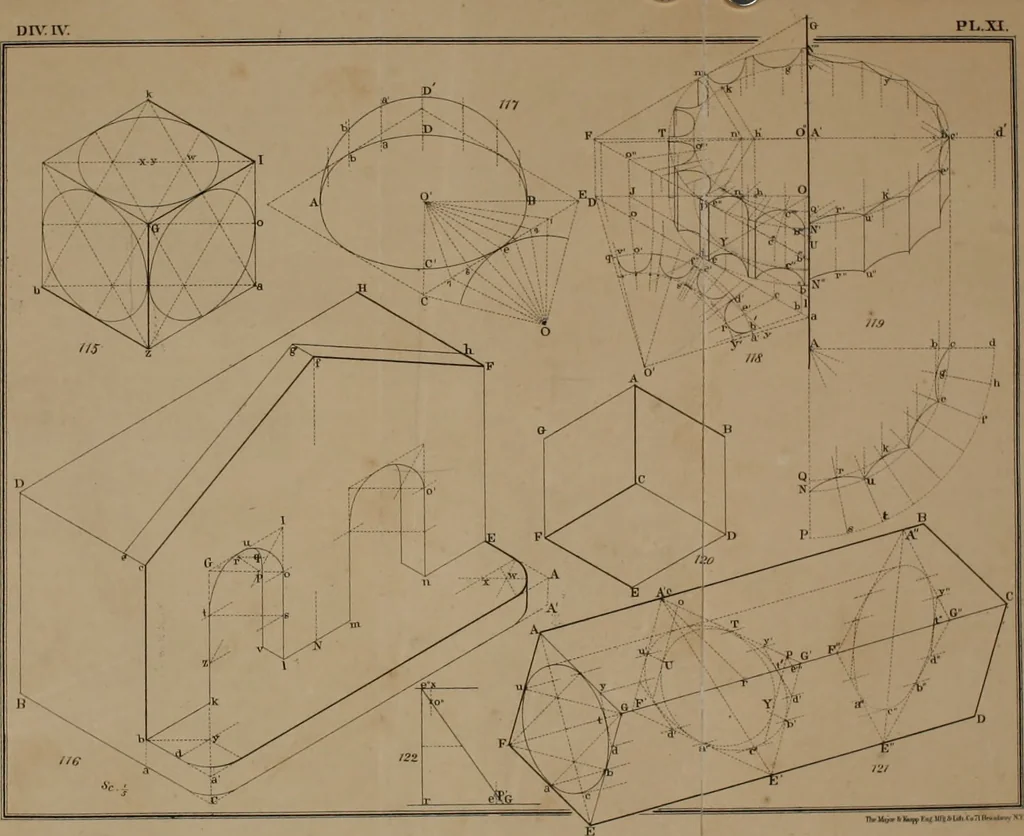

STONE STRUCTURES. 105 this arrangement in tbe plan, hG,fb, gd and DC will represent thejoints of alternate courses, and the lines km, &c. midway betweenthe former, will represent the jonits of the remaining intermediatecourses. This completes a partial and dissected plan which shows more ofthe…
