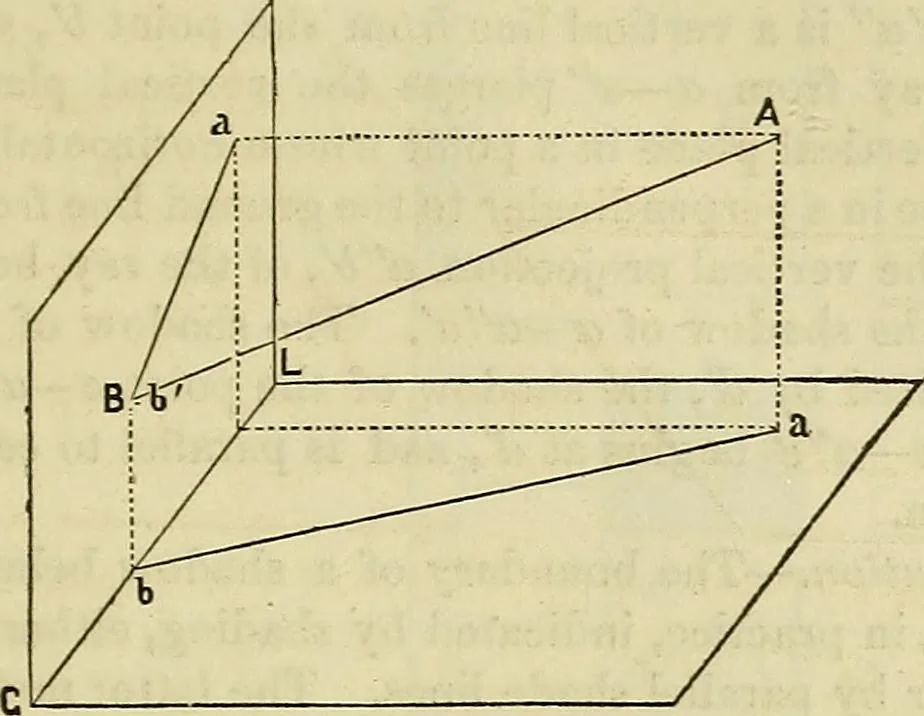

(Prin. 3°), in the perpen-dicular, bb, to the ground line at b. That is, b is the intersectionof bb with ab. The student, in advancing through the following problems, willnow be pi-epared to note the point b, PI. VIII., Fig. 83; the point5, Fig. 84 ; the point d, Fig. 85, and the points p and g^… … Fis. 5.
