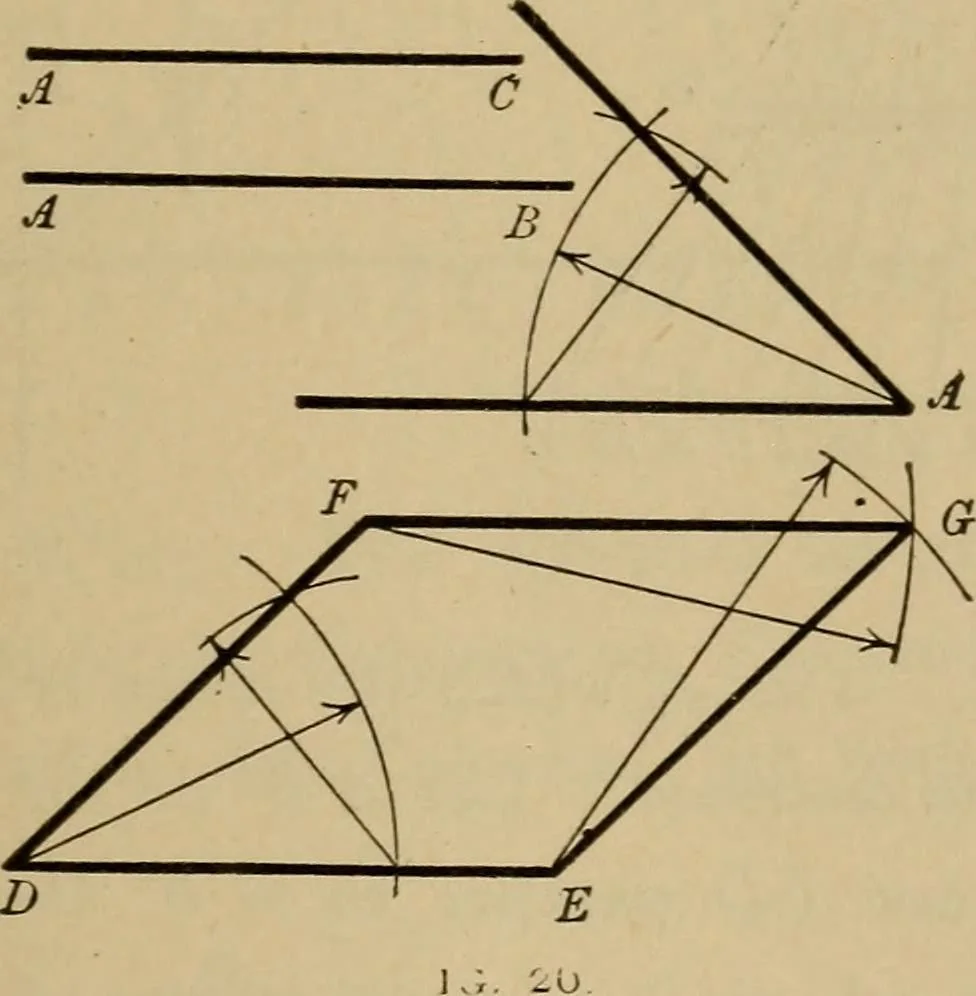

center and anyradius draw arcs 1,2. With 1 and 2 as centers and any con- GEOMETRICAL DRAWIXG. 21 venient radius describe arcs intersecting at//. A line throughC and H divides the angle into two equal parts. Fi2b2(3*. To Construct a Rhomboid having Adja-cent Sides equal to two Given Lines AB and AC,… … Figb 27*. To DlvIDE THE LlXE AB into any NumberOF EQUAL Parts, SAY 15.—Draw a line CD parallel to AB,of any convenient length. From C set off along this line thenumber of equal parts into which the lineABis to be divided.Draw CA and DB and produce them until they intersect atE. Through each one of…
