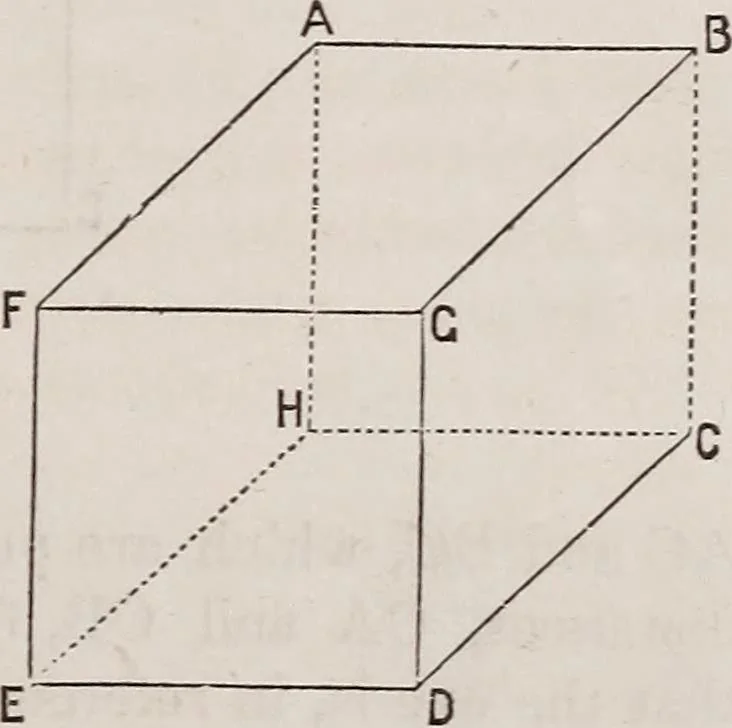

Vis. 2. a cabinet projection of the same cube ; all the edges being of thesame length in both figures. Hence we see, as stated, that in thelatter figure, the faces DEFG, and ABCH, and by consequenceevery line in them, are shown in their true form, as well as size ;which is not true of isometrical…
