A manual of elementary geometrical drawing, involving three dimensions. Designed for use in high schools, academies, engineering schools, etc. : and for the self-instruction of inventors,artizans, etc. ... In five divisions .. (1867)
Warren, S. Edward (Samuel Edward), 1831-1909 · New York : J. Wiley and son · leaf 131

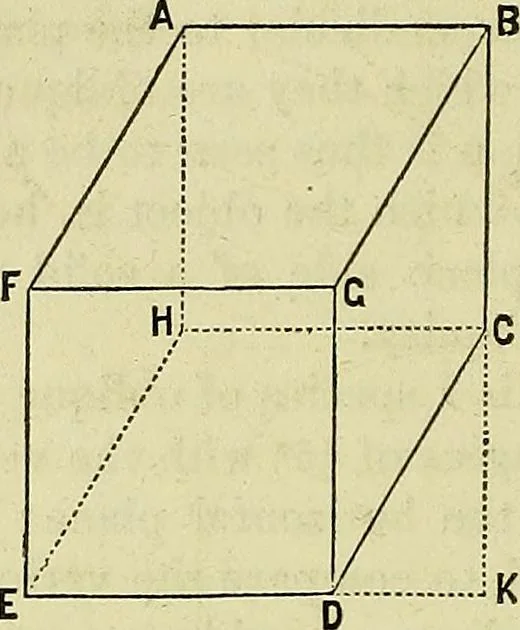

ng which, HC and AB can be drawn as before, to hmit FA,DC, etc. 7 98 CABINET PROJECTIONS. In Fig. 6, CDK = 60°. Accordingly DK = iDC, from winch,having found K, the perpendicular KC can be drawn to limit DC.Or, as before, CK=i VT, DC being =1. That is, CK.= iEC, sinceCDE = 120 . And for a square… … Fig. 6. With these illustrations, the student might proceed to investi-gate other relations between the parts of these, and still othercabinet projections. But the above may suffice for now. We observe that, in Figs 5 and 6, none of the body diagonalsare confounded with the edges; and that each of…
Geometrical drawing · Mechanical drawing
