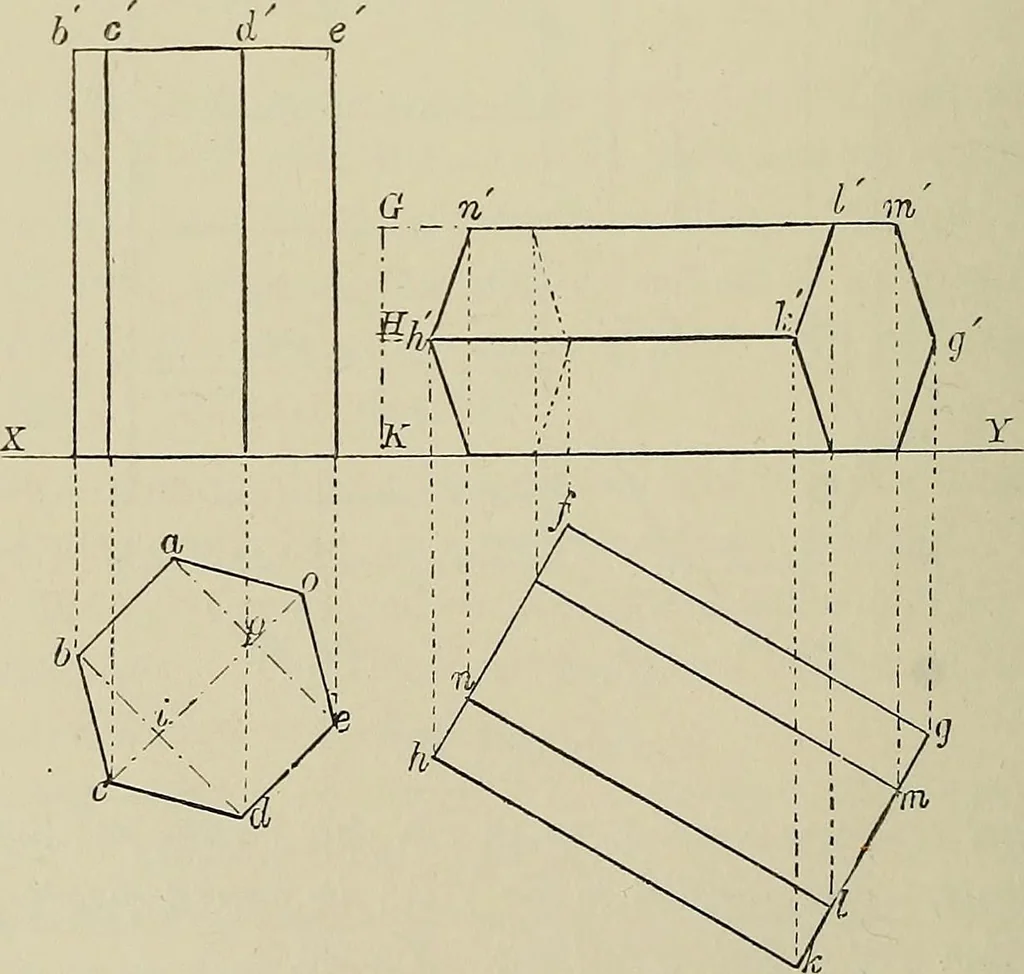

tss,2J, and set off the distances u, s, r equal to the distances K, H, G(Fig. 19). Draw lines from the points s and r parallel to XYtill they meet the perpendicular iid. Tliis completes theelevation. Problem 11. To project a regular licxcigonal jlrisin T^- long, and ivitli sides 2-|wide, standing… … Fig. 21. Fig. 22. a. From a draw the line ah. If long, at an angle of 45° with XY.Complete the hexagon. Above XY draw perpendiculars 7|-long inmiediately above the points h, c, d, e, and join the tops ofthese lines. This completes the elevation. XVIII SIMPLE SOLIDS IN GIVEN POSITIONS TO SCALE 219…
