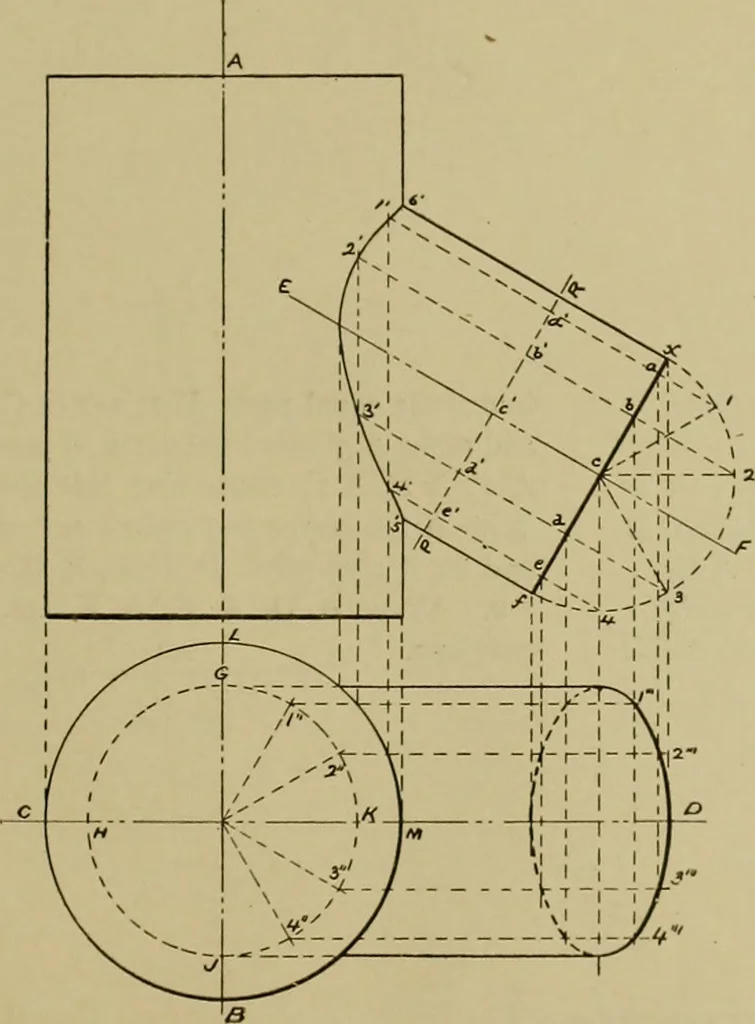

ng lessons, and is clearly indicated inthe plate. To develop the envelope of the smallcylinder, draw g h and make it equal to the circumfer- ence of small cylinder and subdivide, as in previouslessons. Draw P R (see elevation) at right angles toaxis of small cylinder. Transfer P 5 to ^ and h, e 4to…
