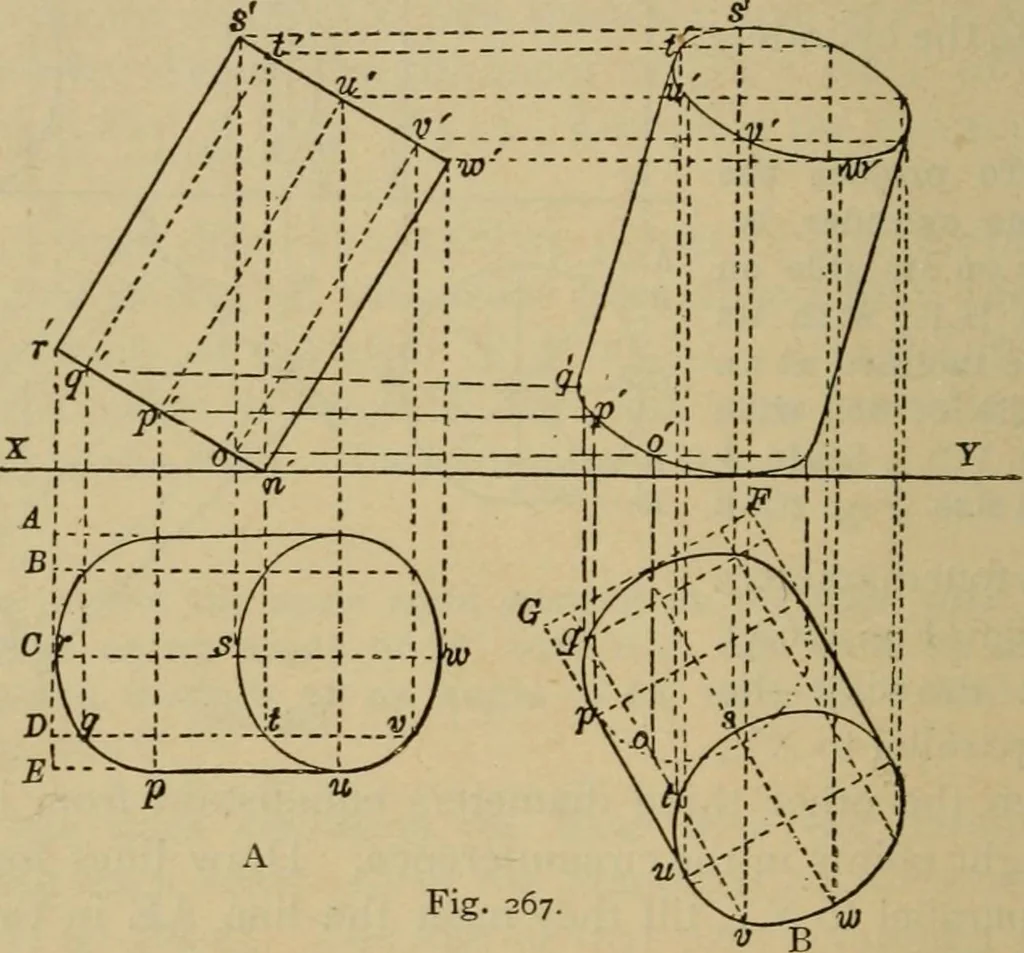

TRICAL DRAWING AND DESIGN. 205. To project the same solid, resting on its edge, with its baseinclined at an ang-le of 30° with the H.P., its axis being parallelto the v.p. Scale ^ full size. Fig. 267 A. Draw XY, and at any point n upon it draw the line nrat an angle of 30° with the ground line. On… … From y let fall a line at right angles to XY, and set off uponit from any convenient point A the points B,C,D, E equal to thedistances n\ o\ p\ q\ r. From each of these points draw linesparallel to XY. From the various points in the elevation dropprojectors till they meet these Hues in the…
