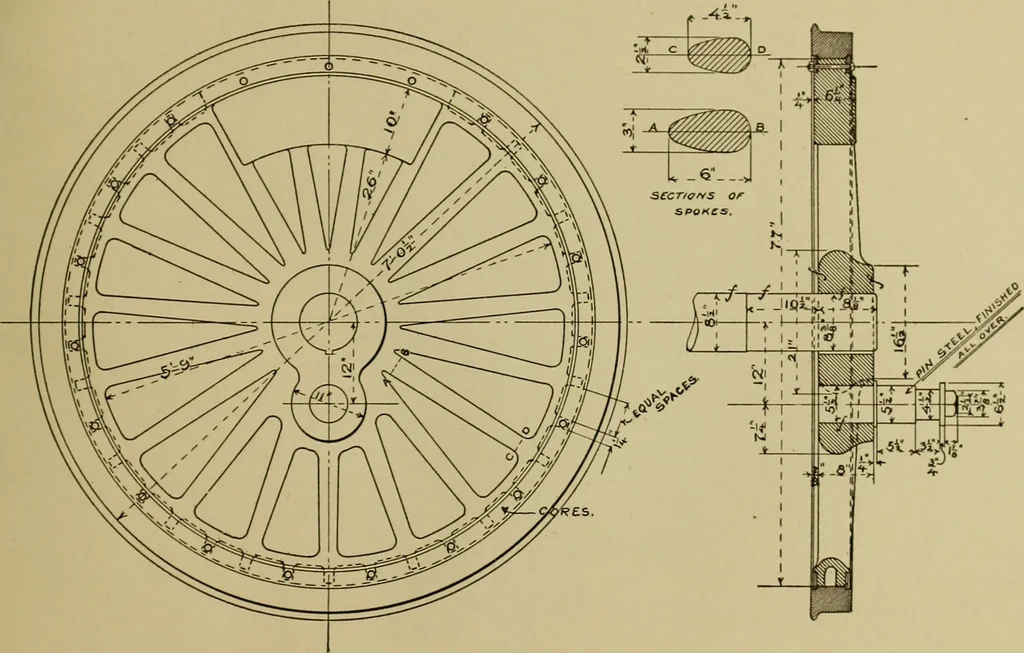

front elevation and sections. Also sections giving theshape of the spokes at hub and rim. Directions fordrawing the front elevation of the wheel, as well as thesection, the same as given for Plate 45, while the details of the rim and tire are given on Plate 51. Make draw-ing to larger scale for… … LOCOMOTIVE DRIVING WHEEL. PLATE 51
Mechanical drawing
