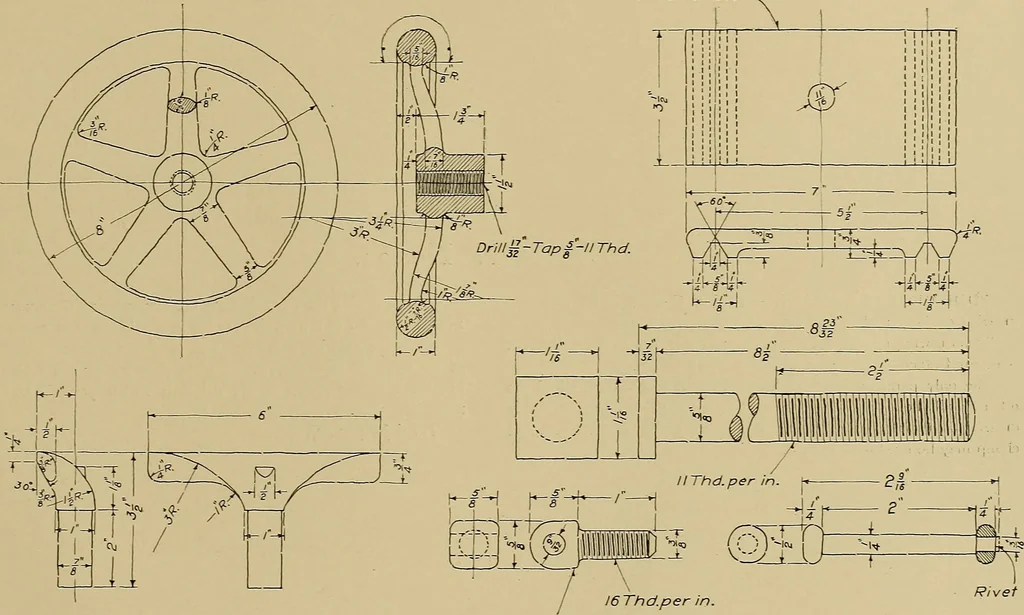

the student should be able to draw this hand wheel without difficulty. When drawing the arms of the hand wheel, bear in mind what wassaid in the earlier hand-wheel lesson, in regard to using a straight linefor the purpose of joining two curves. Do not overlook any of the dimensions on the various… … l6Thd.per in. Rivet Harden CLASS Industrial trade Machinist NAME John W.Roberts dat£ Dec. IB-07. THE CARNEGIE TECHNICAL SCHOOLS PITTSBURGH PA.School or Apppentices aho JoupneymemMECHANICAL DRAWING 19 Spe£D Lathe:Tool Rest Details scALC^8( Full Size owa.no. C./098 LESSON No. 34. TOOL-REST…
