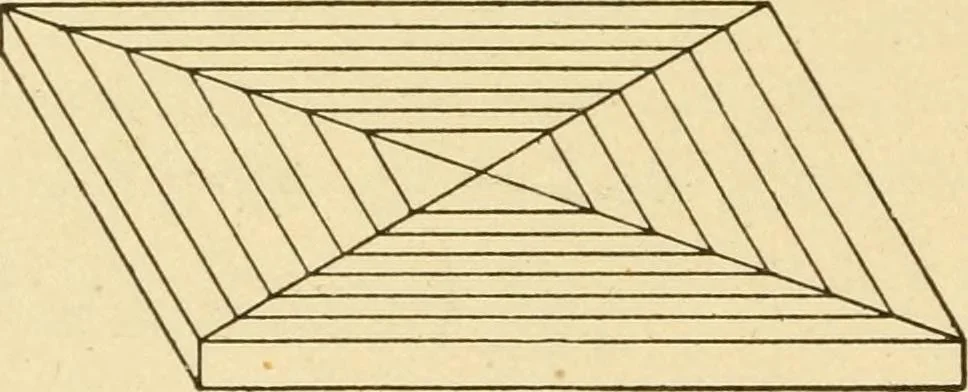

Fig. 61. the opposite side of the board, and between them gauge lines\ in. apart and square lines \ in. apart, as in Fig. 62. … Fig. 62. Prohlem IV. Use of Bevel. — In making lines other thanat right angles to the edge of a board an adjustable square orbevel is needed, as in Fig. 63. It is held and used the sameas the try-square. Prepare a board, as directed in connection with Fig. 52, and USE OF TEY-SQUAEE AND BEVEL. 31…
