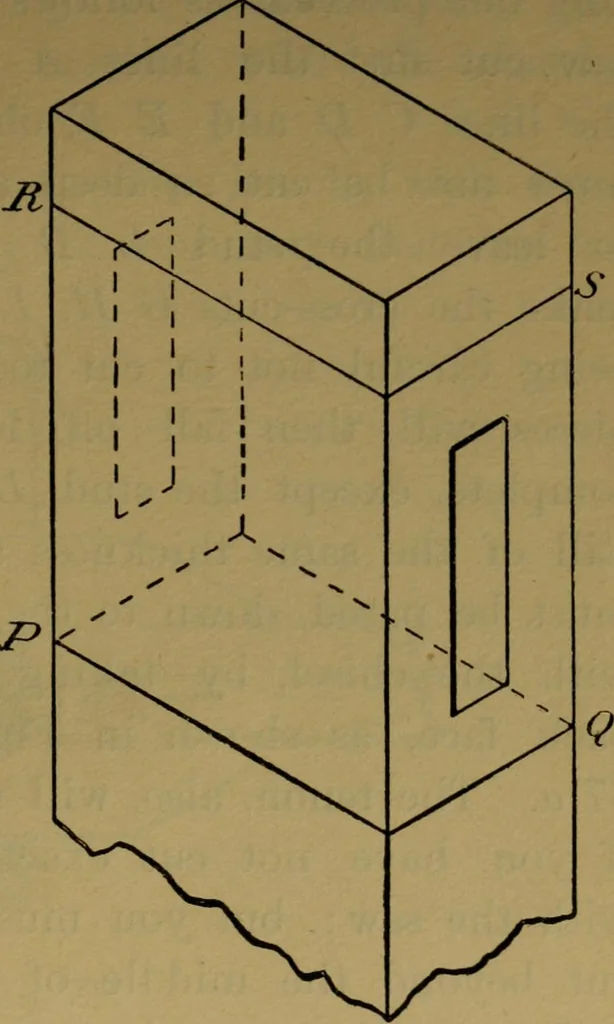

pre-vent mistakes inlaying out therest. Marks onthe inner andouter edges, \and 2 from P Qwill show thelength of themortise; andgauge markswith the gaugeset exactly as indrawing A B,Fig. 77, and meas-ured from thefront face, willshow the widthof the mortise.The marking willappear as in Fig. 78, in… … Tig. 7*. 164 Manual Training. The marking being now finished, the cut-ting out proceeds as follows: With the back-saw cut first the lines A By Fig. 77, thenthe lines C D and E F, observing that C Dmust not be cut so deep as E F} in orderto leave the stud L B uninjured. Nextmake the cross-cuts G H,…
