Manufacture of narrow woven fabrics, ribbons, trimmings, edgings, etc., giving description of the various yarns used. The construction of weaves and novelties in fabric structures, also descriptive matter as to looms, etc (1917)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Textile Pub. Co · leaf 190

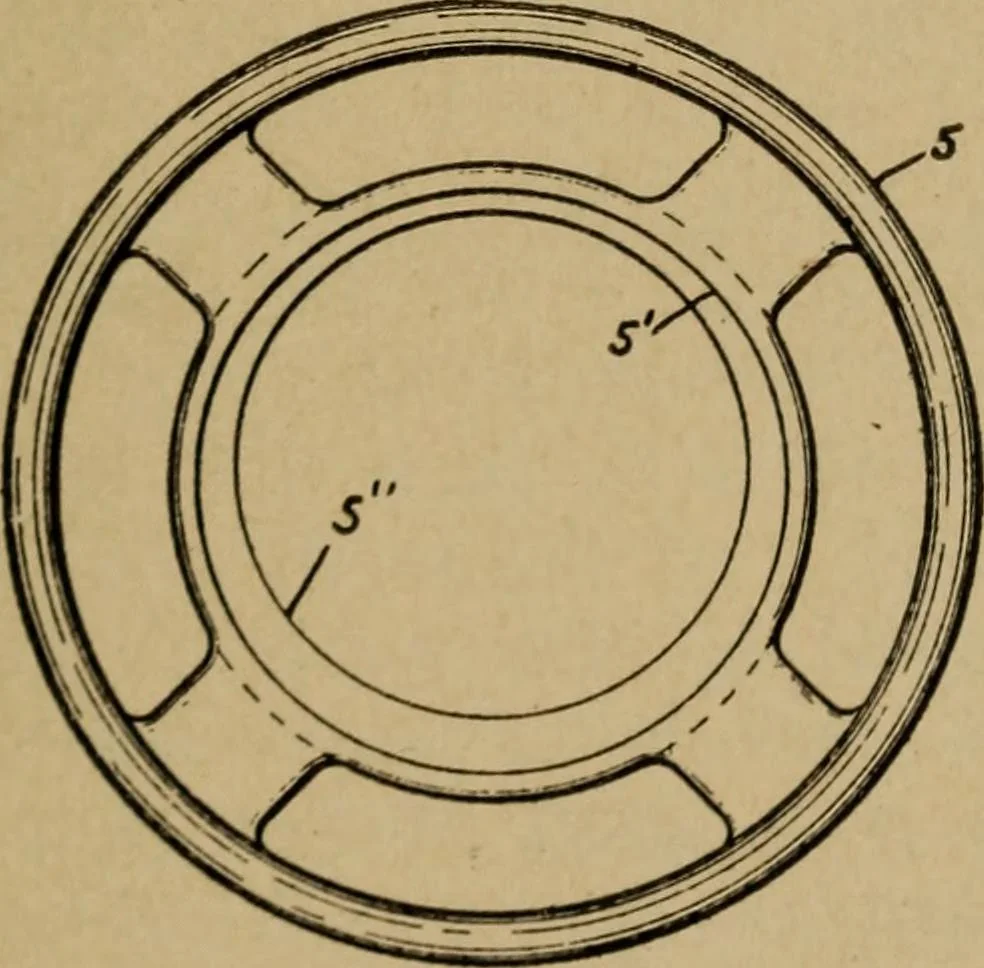

ar 2. The number of the teeth 6 is greater than thenumber of the teeth 4. The gear rim 6 also has ex-ternal teeth 6 thereon, to mesh with the internal teeth7 on the inner edge of the pulley 7, loosely mountedon shaft 1. The number of the teeth 6 is less thanthe number of teeth 7. The combination… … Fig, 228 The eccentricity of the opening 5 in the handwheel 5 is equal to the length of a tooth on the com-bination gear rim 6 plus any additional amount forclearance (see Fig. 229). The inner edge of the pulley 7 bears against theinner edge of-the hand wheel 5, a collar 8 secured on 178…
Weaving · Textile fabrics
