Manufacture of narrow woven fabrics, ribbons, trimmings, edgings, etc., giving description of the various yarns used. The construction of weaves and novelties in fabric structures, also descriptive matter as to looms, etc (1917)
Posselt, E. A. (Emanuel Anthony), 1858-1921 · Philadelphia, Textile Pub. Co · leaf 39

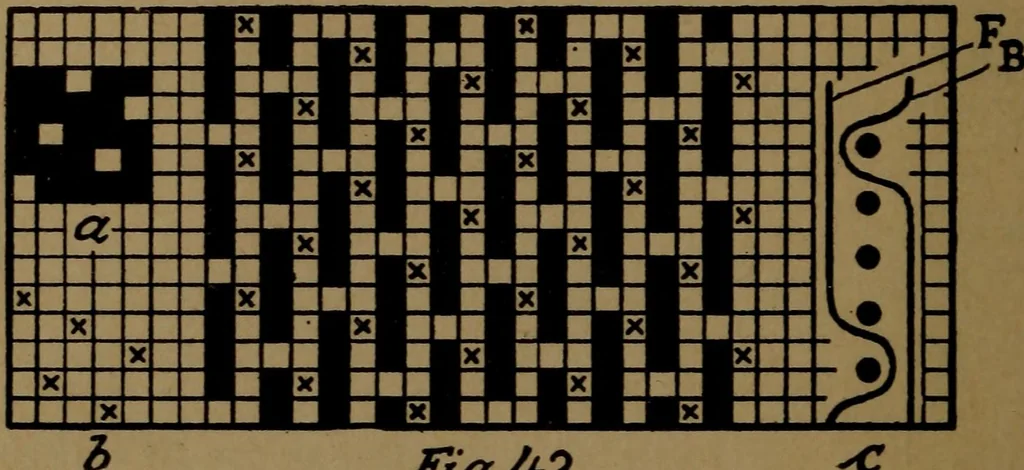

stems of warp-threads. These weaves find usein connection with double faced ribbons, coat and shoestraps, etc. Any warp effect satin, twill, etc., may beused for face, its mate or any other filling effect weavebeing used for interlacing the back warp. The interlacing of the two systems of warp with… … rig.42 * comes between two sinkers of the back warp, and viceversa place your risers of the back warp so every onecomes between two risers of the face warp. Weaves Figs. 42, 43 and 44 are given to illustratesubject. In all three examples the face warp is shownby black type, and the back warp by…
Weaving · Textile fabrics
