Recent cotton mill construction and engineering (1894)
Nasmith, Joseph · London : J. Heywood · leaf 153

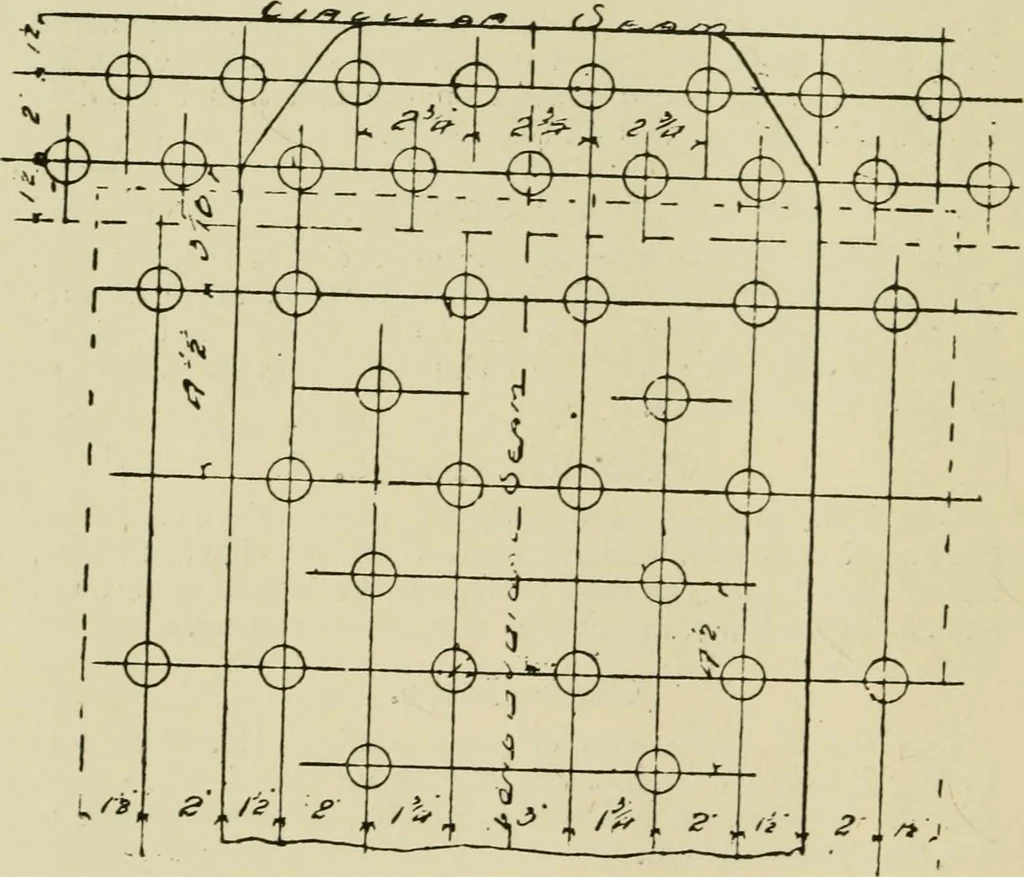

es and bearers for covering the blow-off pit, theflooring plate in front of the blow-off recess to extendupwards behind the angle ring of the shell, and to be curvedgo as to fit the bottom of the boiler to prevent the ashesfalling into the blow-off pit. In order to illustrate the constructive… … Fig. 59. remarks are valuable. Fias. 59 and 60 are illustra-tive of the lap joints used for longitudinal seams.That m Fig. 59 is one most generally adopted, andhas a strength of 83-3 per cent, while the examplegiven in Fig. 60, which is designed and made byMr. Shenton, gives an effective strength…
Textile factories -- Design and construction · Cotton manufacture · Cotton machinery
Internet Archive · UMass Dartmouth, Claire T. Carney Library · Public Domain Mark 1.0. Free to use for anything.
