The manufacture of paint; a practical handbook for paint manufacturers, merchants, and painters (1915)
Smith, J. Cruickshank (James Cruickshank), b. 1870 · London, Scott, Greenwood · leaf 215

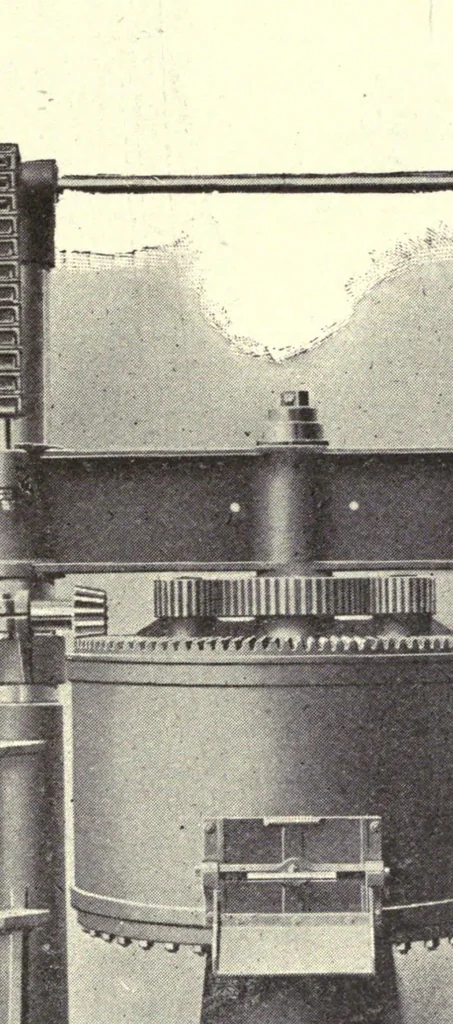

198 THE MANUFACTURE OF PAINT. simple mechanical device the spindle and blade can be lifted bodily out of the pan either to allow of the latter being emptied or cleaned or to enable it to be replaced by another pan. Charges of from 60 to 100 gallons can easily be dealt with in this type of mixer. … FIG. 63. — Vortex current paint mixer. An up-to-date installation of a gang of these mixers with direct geared drive is shown in Figs. 64 and 65. The mixers are in pairs, each pair being fixed on a central pivot. One spindle with blade attached is provided for each pair. As soon as the contents of…
Paint
