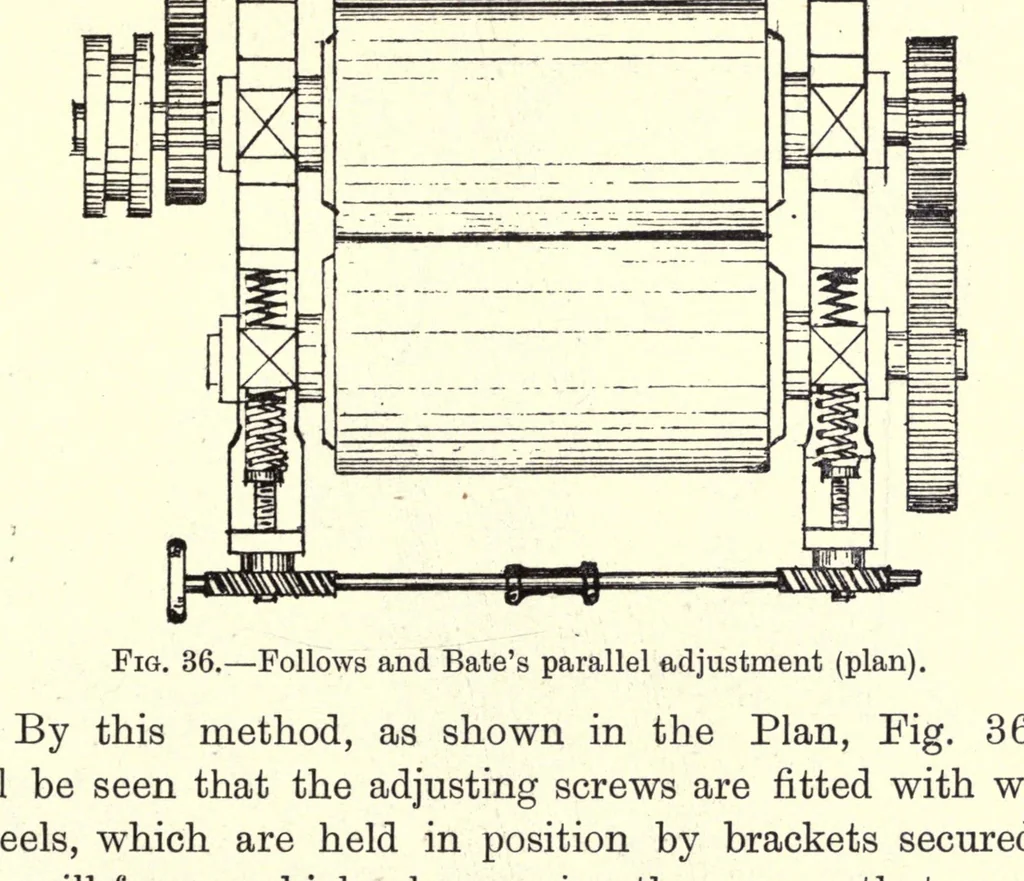

70 THE MANUFACTUKE OF PAINT. opposite the middle roller, thus securing the even pressure and wear of the rollers from end to end, and effectually pre- venting them from being worn taper. When the machine has been adjusted, an arrangement has been introduced by FIG. 37. — Follows and Bate's parallel… … FIG. 38. — Three-roller grinding mill fitted with parallel adjustment and locking caps on adjusting screws. It will be observed that the adjustment is applicable both to the front and back rollers. Fig. 38 represents a mill fitted with the arrangement, the worm wheels being capped over.
