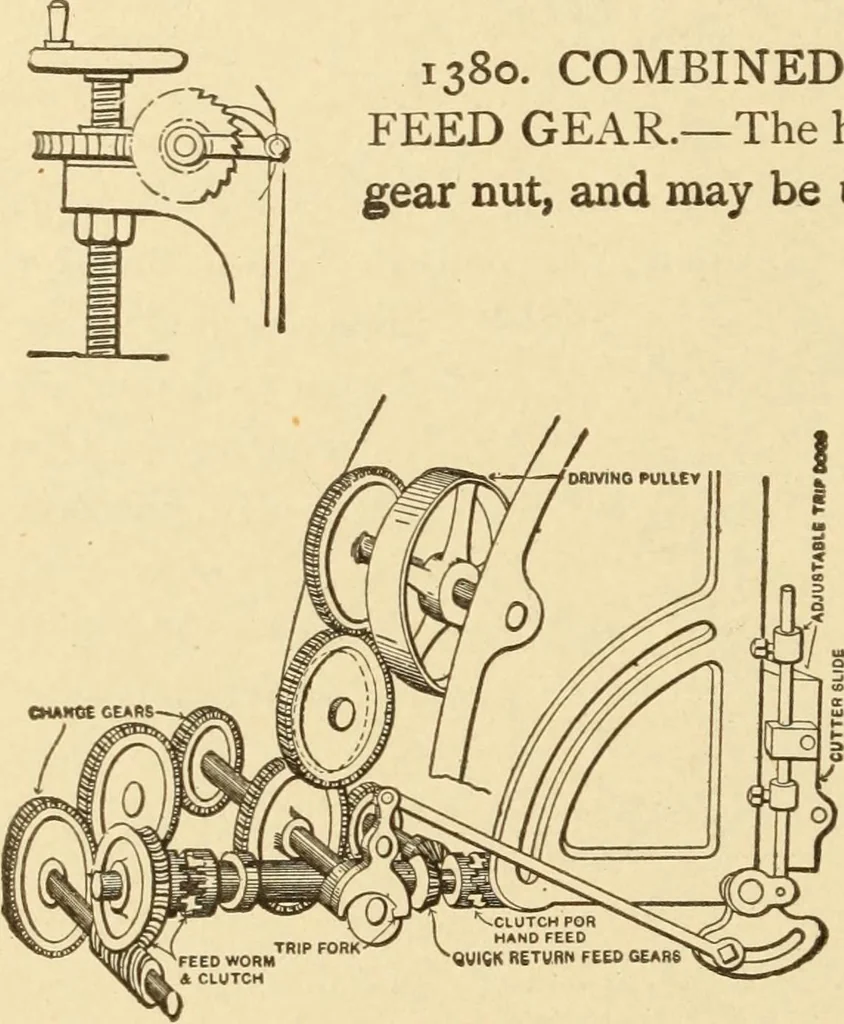

1379. FEED WHEEL for a planing machine.The corrugated upper wheel pushes the lumberto the cutter. 1380. COMBINED RATCHET AND HANDFEED GEAR.—The hand screw turns in the worm-gear nut, and may be used for quick adjustment. … 1381. GEAR TRAIN, f I with quick return, for a gear-cutting machine.
