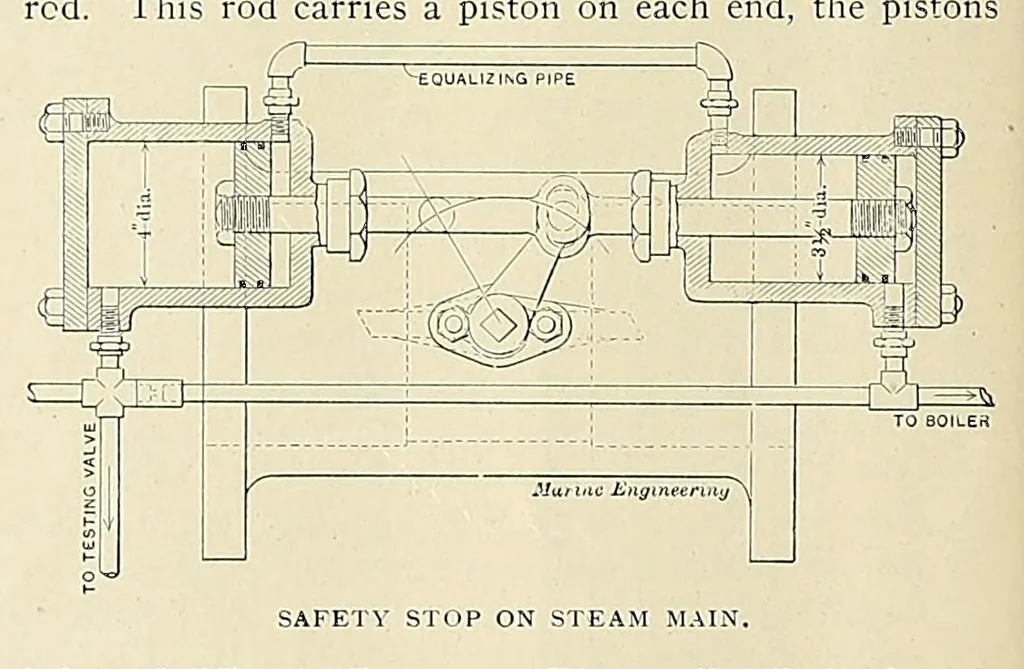

ntains the chart room and observation is inserted in the steam main. By reference to the draw¬ house, and the top of this house extends out to the ing it will be seen that on the stem of the butterfly valve sides of the vessel forming the navigating bridge. The an arm is fitted which is connected… … The propelling machinery of the yacht will consist being of different diameters. The small cylinder is con¬ of a vertical triple expansion engine and a steel single nected at its back end by a pipe direct to the boiler, while ended Scotch boiler. The engine will develop 1,100 the larger cylinder is…
