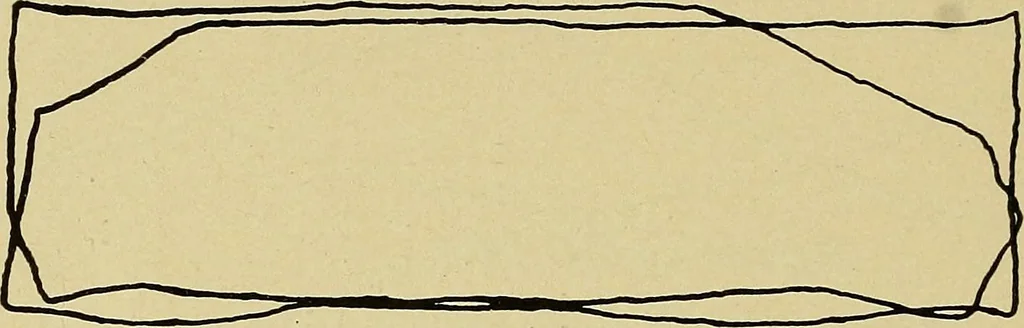

Pressure, Ref. D. to L. P. Cyl.=2S.62 lbs.Throttle full open. All valves linked up to cut-off 29f* top. 2tU bot, 96 MARINE INDICATING ENGINE Series 434X57X104 HIGH PRESSURE Diam. Cylinder 34 Diam. Piston Rod... 9 Stroke 63 Scale of Spring ... 120I/H. P. Constant .2787 63 INTERMEDIATE PRESSURE Diam.…
