Marine engine indicating; a complete treatise on the indicator and indicator diagrams as applied to marine engines (1910)
Linch, Charles Sutterley, b. 1869 · Boston, American Steam Gauge and Valve Mfg. Co. · leaf 16

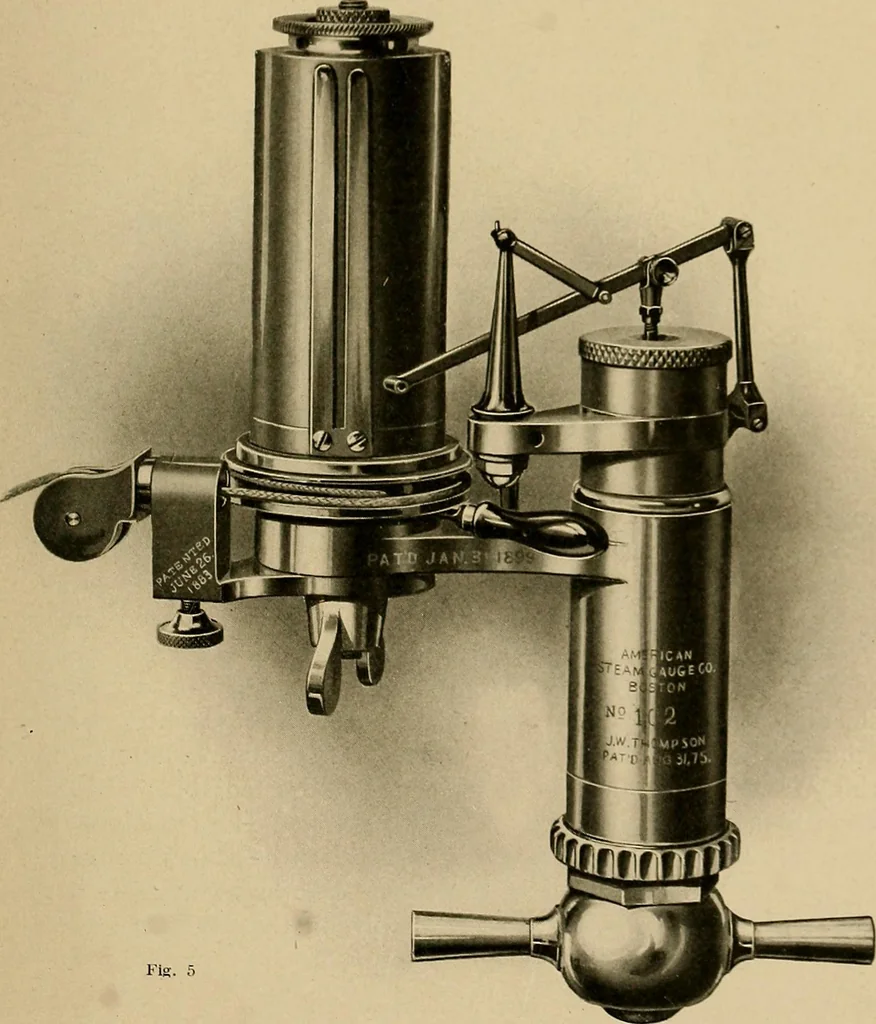

ver to p<and to collar on piston rod, otherwise the details are the same. It will l>e noted that the hracket which carries the paper drumis drilled and tapped for one of the .standards of which there are two,and that there is a lug cast on the cylinder casing which carries the otherstandard.… … Fig. 5 14 MARINE INDICATING at the upper end. This flange forms a shoulder on which the collarcarrying the two links connecting the pencil lever rests. On top ofthis collar is carried the spring base which is provided with four holesin which is inserted a pin for holding piston-rod) from turning…
Indicators for steam-engines · Marine engines
