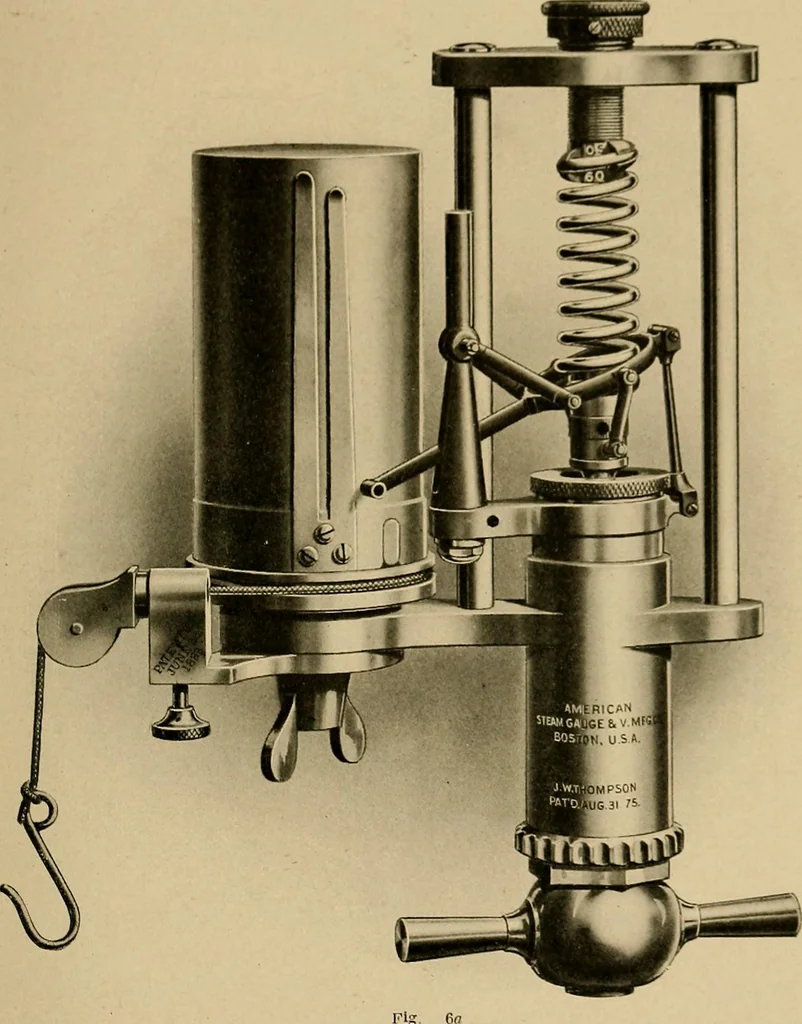

ead of which has the same pitch as thecord, so that when the cord is drawn out the wheel travels as it re-volves. Thus the cord is wound smoothly on the drum and passesstraight through the guide pulley. MARINE INDICATING LS In using the reducing wheel oil the indicator, remove the leading pulley… … disk from the left. Before hooking in, see that cord on wheel and in-dicator is taut at shortest part of stroke and that it will pull out a littlefurther than longest part of stroke. The cord from reducing wheel to cross-head must run in astraight line. 16 MARINE INDICATING In unhooking the cord do…
