Marine engine indicating; a complete treatise on the indicator and indicator diagrams as applied to marine engines (1910)
Linch, Charles Sutterley, b. 1869 · Boston, American Steam Gauge and Valve Mfg. Co. · leaf 80

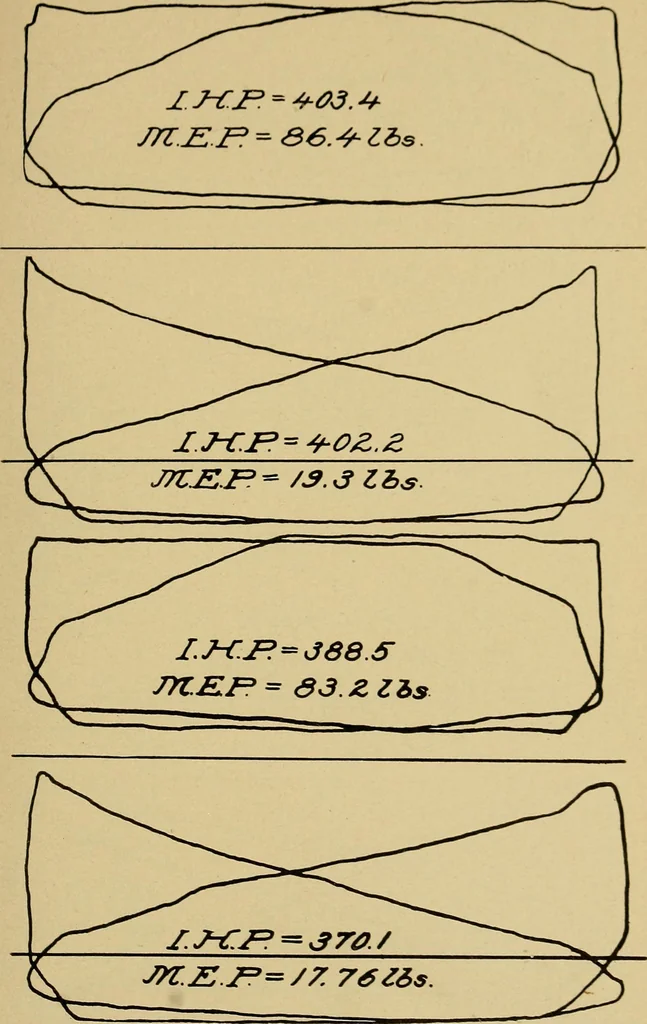

Run No. 4ASteam 126 Ford Rec. 22 Aft. Rec. 22 Vac. 25 Rev. 130I. H. P., F. H. P. 401.2 I. H. P., F. L. P. 370.51. H. P., A. H. P. 378.4 I. H. P., A. L. P. 343.8 Total, I. H. P. 1493.9 Throttlewide open. Gear F. H. P. linked in If. A. H. P. linked in 1£.F. L. P. linked full out. A. L. P. linked full… … Run No. 5ASteam 127 Ford Rec. 25 Aft. Rec. 23 Vac. 23| Rev. 128I. H. P., F. H. P. 403.4 I. H. P., F. L. P. 402.2 I. H. P., A. H. P. 388.5 I. H. P., A. L. P. 370.1 Total, I. H. P. 1564.2Throttle wide open. Gear full out on all. 76
Indicators for steam-engines · Marine engines
