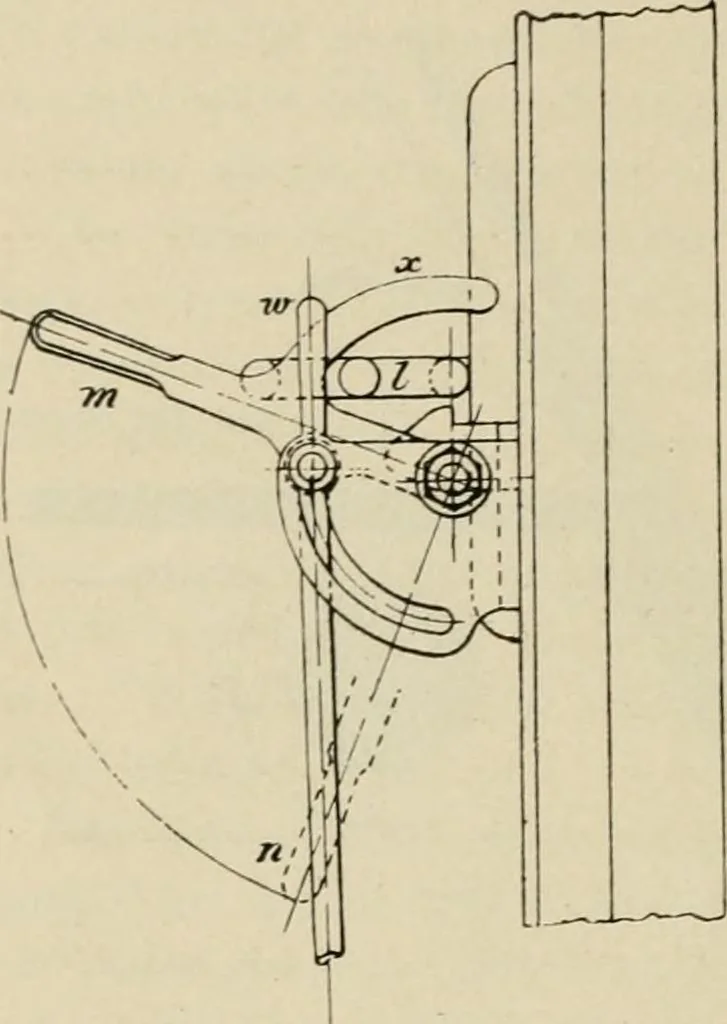

e new- position n. But w^hen the handle m is shoveddown, the rod p (see Fig. i), is carried down too, and as it goesdow^n it turns the crank on the damper spindle, and so closes thedamper and shuts off the air. The position of the damper whenclosed is shown in Figs. 2 and 3. It can now be seen that… … Fij 4.—Side Elevation of FurnaceDoor Locking Device. PROBLEMS, NOTES AND SKETCHES. I9 NOTES ON LIQUID FUEL. Art. 4.—Chap. VI., S. & O.) Liquid Fuel—Gives special facilities for the development andmaintenance of intense heat, for the quick control of applied,steady heat, and for the rapid…
