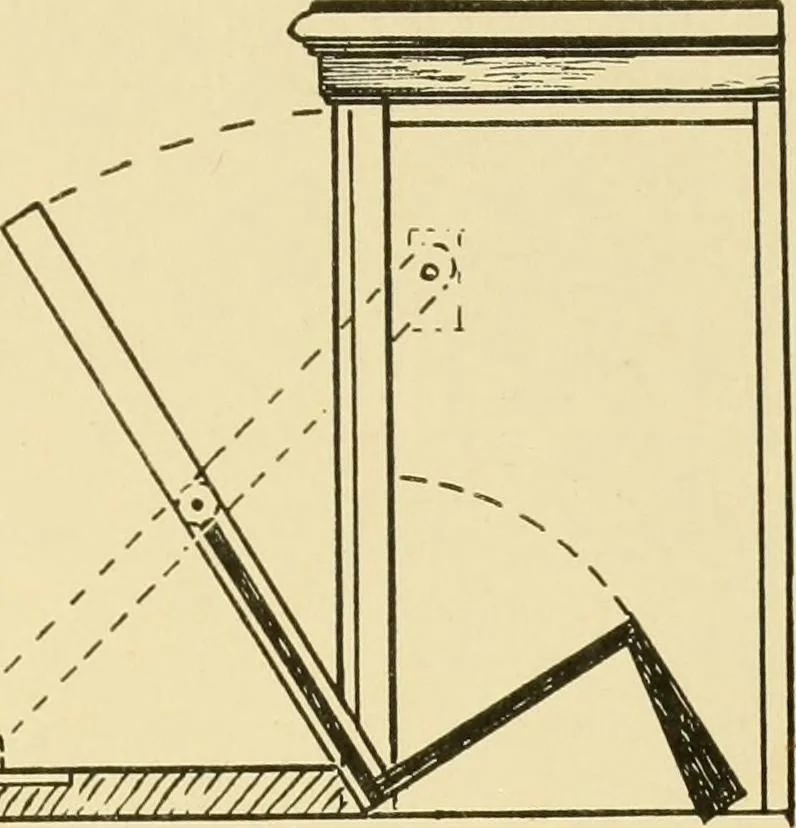

2. Method of Fixing Rule Joint Stay. CONSTRUCTIONAL BRASSWORK, MOVEMENTS, AND FITTINGS 265 / / … // 1. Method of Supporting Heavy Flaps. and if set out again half way asat B, the length of the lower slotis obtained, whilst A gives thelower end of the upper slot andB the top end. A small platefixes the centre pivot, and afilling-in end will be necessaryto cover the bar. A tongue onthe fall is…
