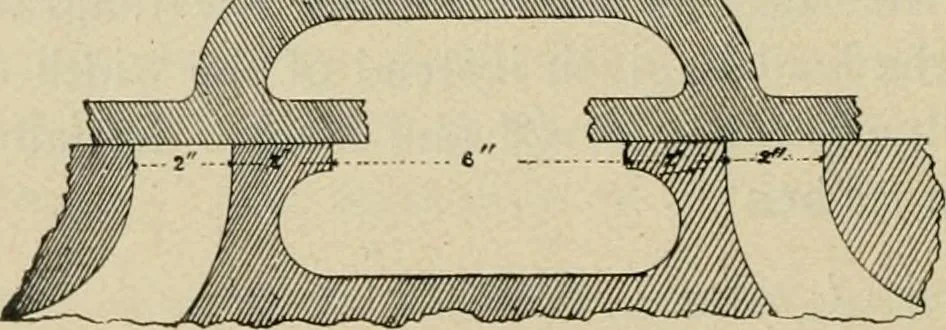

he connecting rod :=5. The valve has an exhaust lap of yl, and a steam lap of i.The maximum port opening for exhaust is 2.y^. Compressionbegins when the piston is 12 from the end of its stroke. Find the travel of the valve, and the angle of advance. 63. The valve, a sketch of which is shown, is to… … PROBLEMS, NOTES AND SKETCHES. 53 The exhaust is to begin to open when the piston is at y^, of itsstroke from the end, and the admission to occur jV of the strokefrom the end of the stroke of the piston. Find the steam and exhaust laps, the travel of the valve, theangle of advance of the eccentric,…
