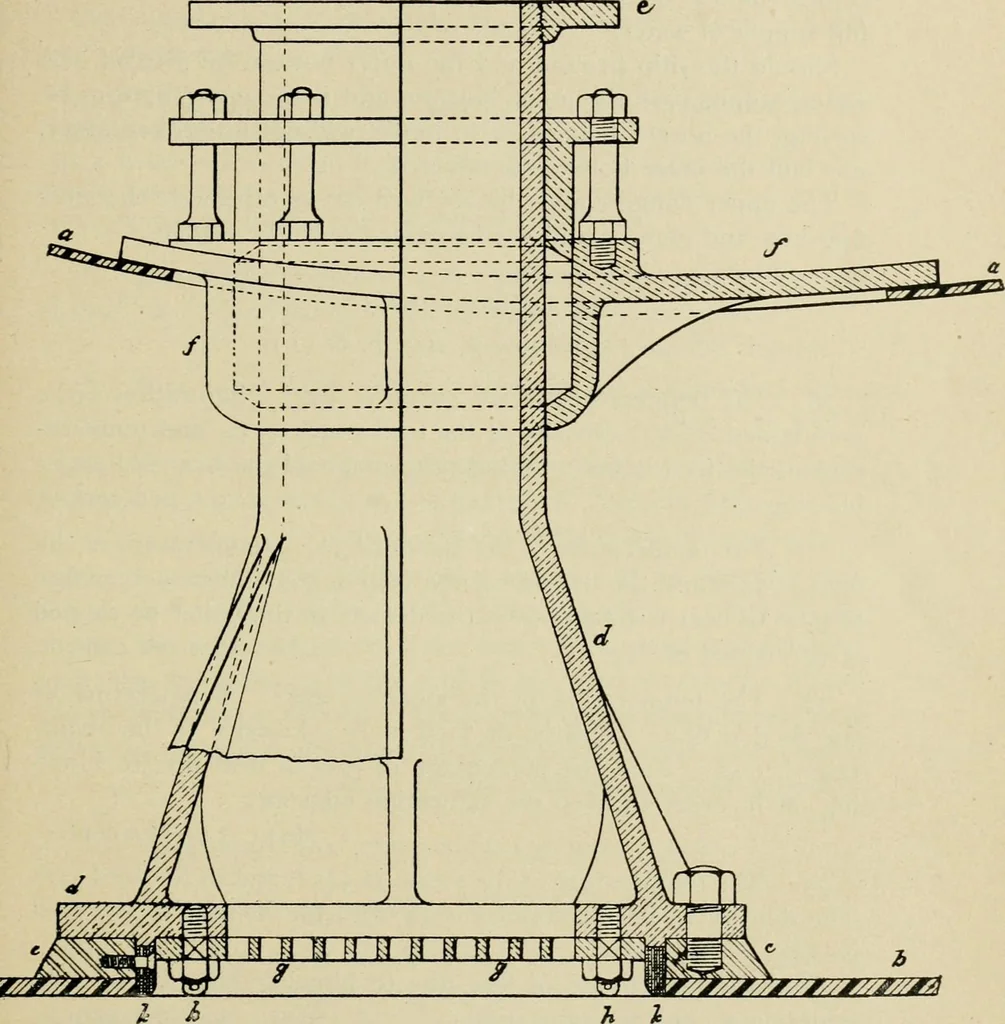

thestuds. A plate f, having a stufifing-box cast with it, is then passedover the end of the nozzle, and is bolted to the inner bottom a.Stud bolts are screwed in f around the stuffing-box, and serve tohold in place the gland, which is passed over the end of the nozzle PROBLEMS, NOTES AND SKETCHES.… … Fig. 25. The zinc ring k protects the bottom of the ship from pitting bybeing eaten away gradually during the electrolytic action whichis set up by runningsalt water through the steel skin of the shipand the composition nozzle. 56 MARINE engines: The grating g prevents the entrance of large pieces…
