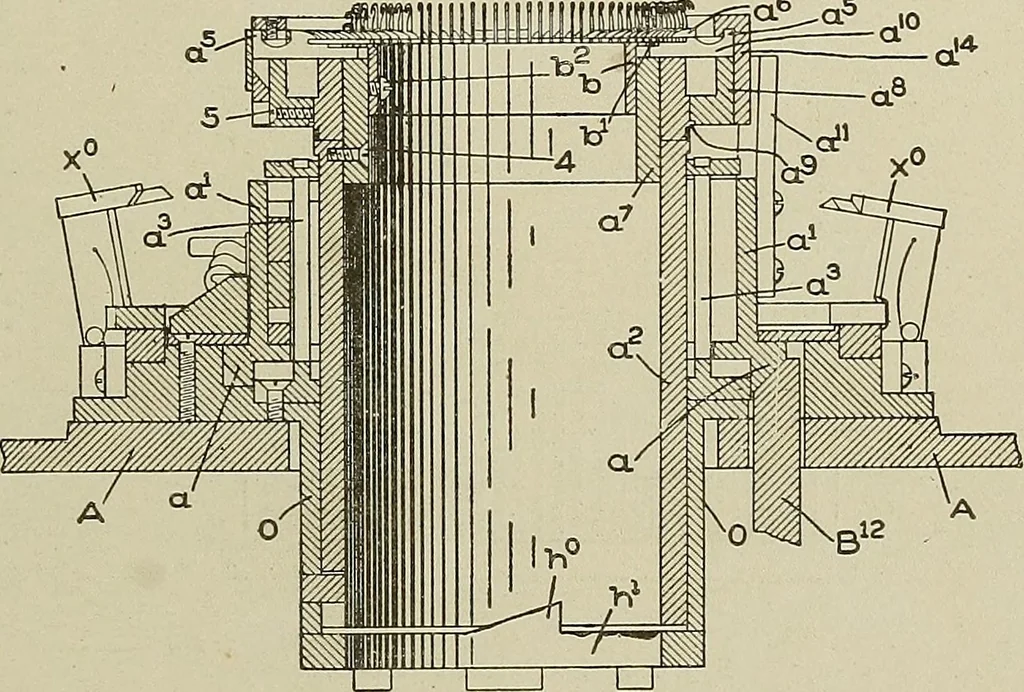

m a support for the outer ends of the jacks a^^,and similar grooves are provided in the upper end of the part a^ of theneedle cylinder, for the inner ends of the jack. Each jack is madewith a projection a^ to enter the annular groove in the ring a, whichis movably mounted to rotate on the jack… … Fig. 134. Needle Cylinder. The ring a}* rests directly upon, and is supported by, the ringa^, and is operated from the cam cylinder a^ by means of an arm a,which is fixed to the latter and engages with the stops projecting out-v/ard from the jack ring a. Adjusting screws are inserted in thestops…
