Hydraulic engineering; a practical treatise on the principles of water pressure and flow and their application to the development of water power, including the calculation, design and construction of water wheels, turbines, and other details of hydraulic power plants (1909)
American School (Chicago, Ill.), Black, Adolph, Turneaure, Frederick Eugene, 1866- · Chicago American School of Correspondence · leaf 219

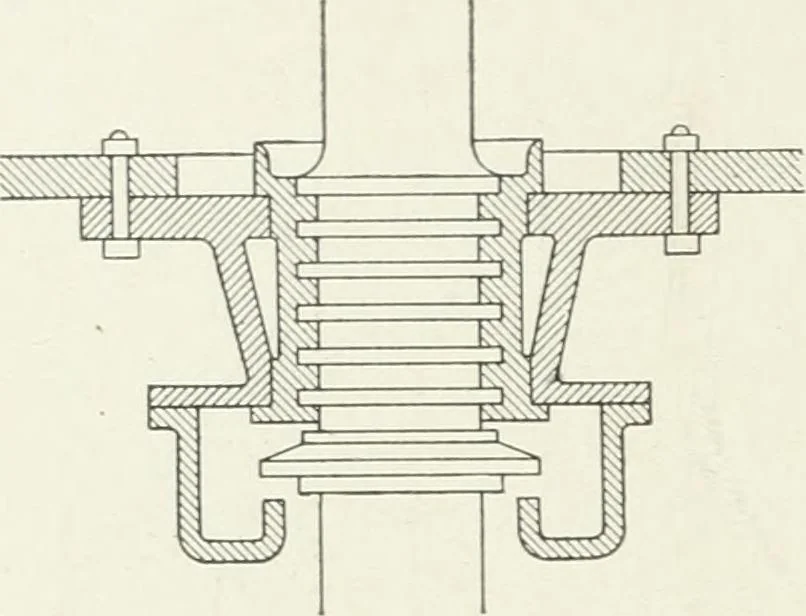

rate fric-tion. The oil passes between these surfaces into the space c, andtherefore the upward pressure on plate a would be neutralized, wereit not that an(jther pipe d, communicating with this space, conveysthe oil back to the tank from which the pump draws its supply. 161. A metal collar… … Fig. 87. Metal Collai- Thrust-Bearing. of the turbine is taken off. Both the straight and the collar bearingsof the main turbine shaft should be adjustable, and should be linedwith bronze as a base, and the bronze in turn lined with an anti-friction metal, or babbitt, well hammered and bored. 162.…
