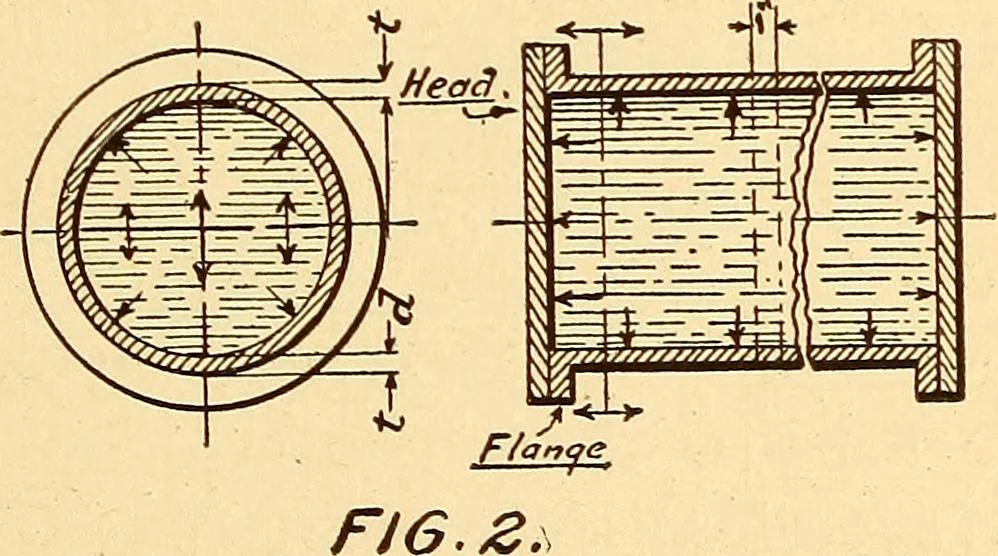

undsper square inch. Aswater is practicallyincompressible, it willbe readily understoodthat for any one inchlength of the pipe(see Fig. 2) the watercontained on oppositesides of any one diameter is subjected to a spreadingaction equal to the pressure per square inch on each inchof said diameter.… … 92 Pipes and Cylinders Hence the formula, Pressure (P) X diameter (d) Xlength (/) =2 Xthickness (0 Xlength (/)Xultimate tensilestrength of the material (S)-f-factor of safety (/), or Pdl=^- and Pd = ~ Example. What thickness of cast iron is required fora water pipe 10 in diameter under a pressure…
