Mathematics for engineering students, Analytical geometry and calculus (1907)
Keller, S. S. (Samuel Smith), 1867-1923, Knox, W. F., [from old catalog] joint author · New York : D. Van Nostrand company · leaf 116

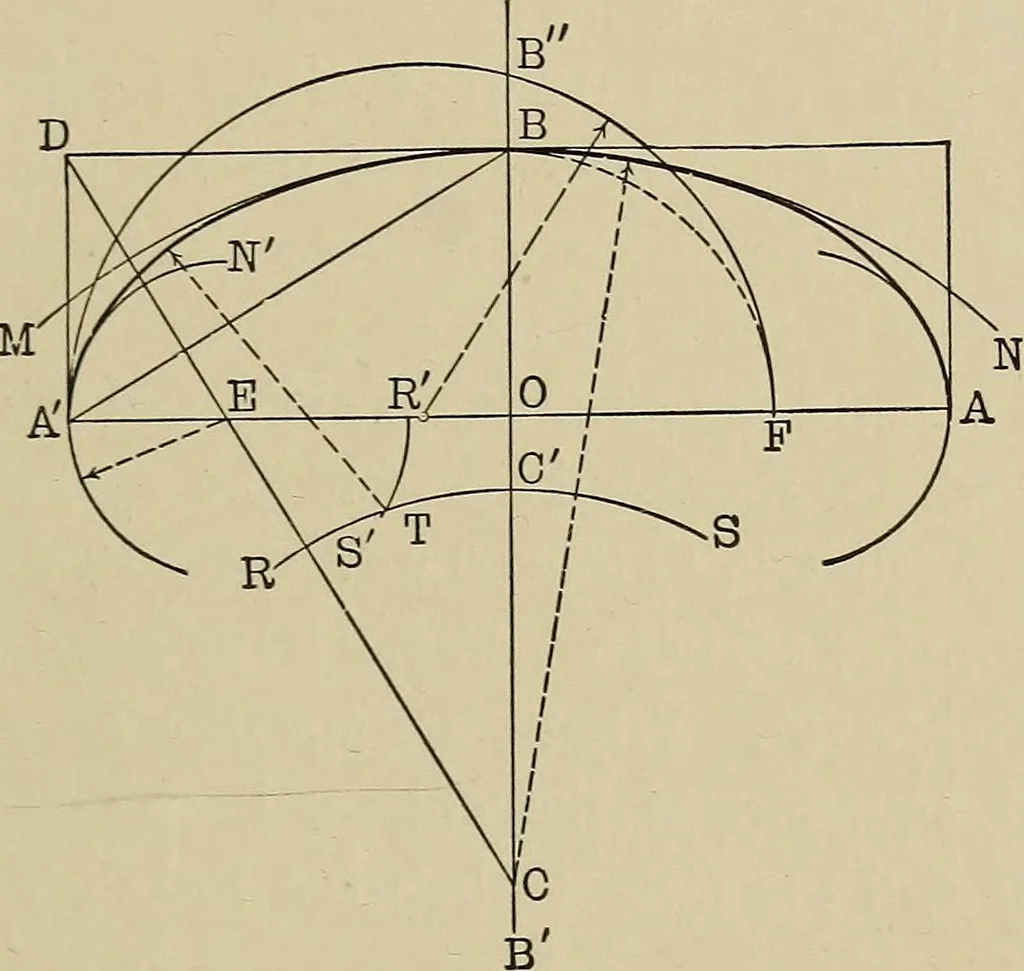

theellipse. Second Method: This is known as the three centremethod, or three point method, and is approximate only.Let AA and BB be the axes, intersecting at O (Fig. 39ft). Analytical Geometry. 107 Complete the rectangle BOAD and draw the diagonal AB.From D draw the line DE perpendicular to AB and… … Fig. 39b. cutting AA at F. On AF as diameter construct thesemicircumference ABF, cutting BB produced upwardat B. Lay off BB from O toward B to C. With C ascentre and CC as radius describe arc RS. Lay OB from A on AA to R. With E as centre andER as radius draw arc RS, intersecting arc RS at T.With T…
Geometry, Analytic · Calculus
