Measurement of vessels for the Panama canal (1913)
Johnson, Emory Richard, 1864-1950, United States. War Dept · Washington : Govt. print. off. · leaf 31

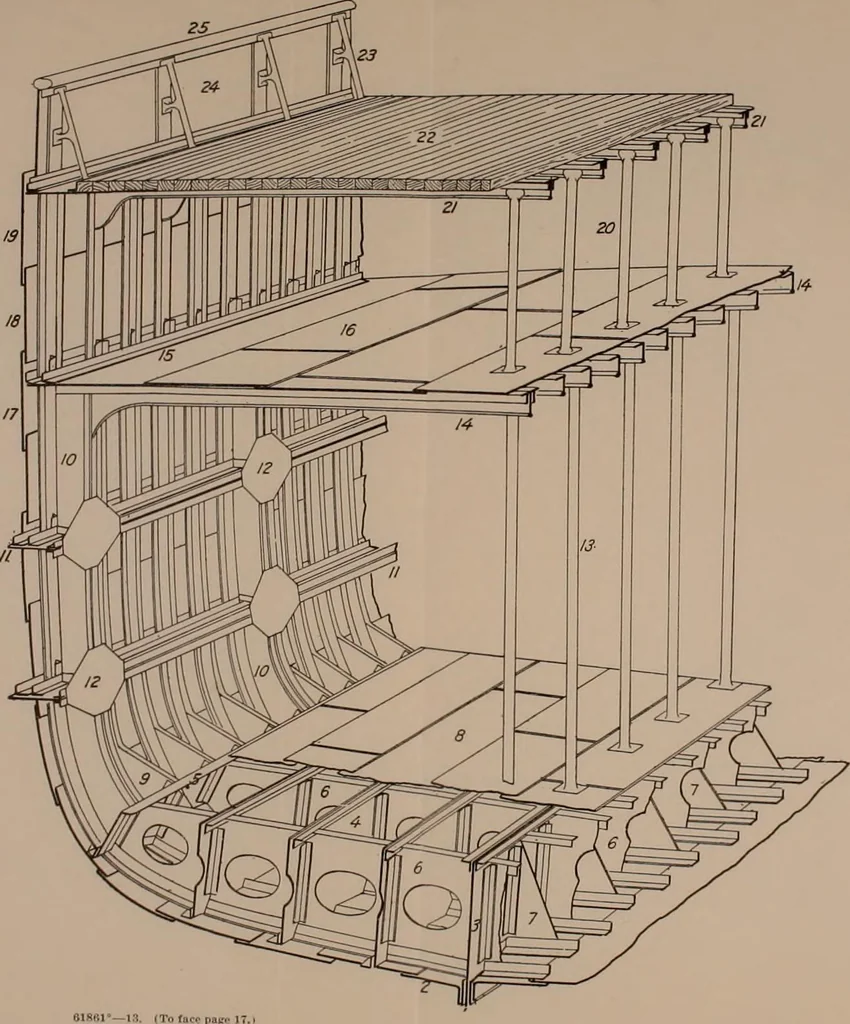

irders 5 Wing girder; Margin plate 6 Floors; Intercostal floors 7 Brackets. 8 Inner bottom; Top of double bottom. Top of tank. 9 Bracket frames 10 Web frames 1/ Side stringers 12 Diamond plates 13 Hold pillars. Hold stanchions. 14 Mam deck beams 15 Mam deck stringer 16 Mam deck plating 17 Mam deck… … -18. (To facfl page it. MEASUKEMENT OF VESSELS FOR PANAMA CANAL. 17 tudinal wing girder at the upward bend of the frames, are crossed at right angles by the longi-tudinal side girders that parallel the keelson. The floors may be continuous from keelsonto margin plate and the side girders…
