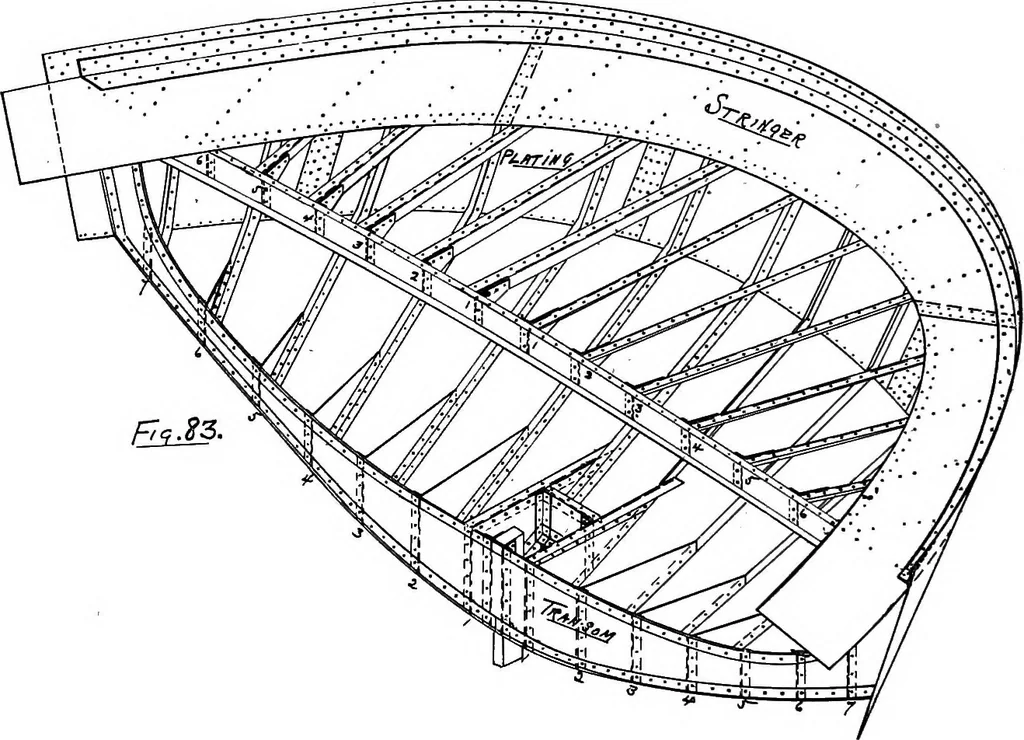

iron to this lineon the half breadth plan and on the set iron the buttock lines are 70 LAKE SHIP YARD METHODS OF copied, so that when the setiron is applied to the line DF the buttocklines on the set iron must agree with the buttock lines on the ex-panded plating. For example, take plate No. 1, the… … the lines will not be rubbed out in handling before the plate gets tothe rolls. The set line DF being near the knuckle line, two other lineswould be put on the plate parallel to the set line, one a foot from theset line at the bottom of the plate and another twelve inches from thetop butt. Plate…
