Measurement of vessels for the Panama canal (1913)
Johnson, Emory Richard, 1864-1950, United States. War Dept · Washington : Govt. print. off. · leaf 32

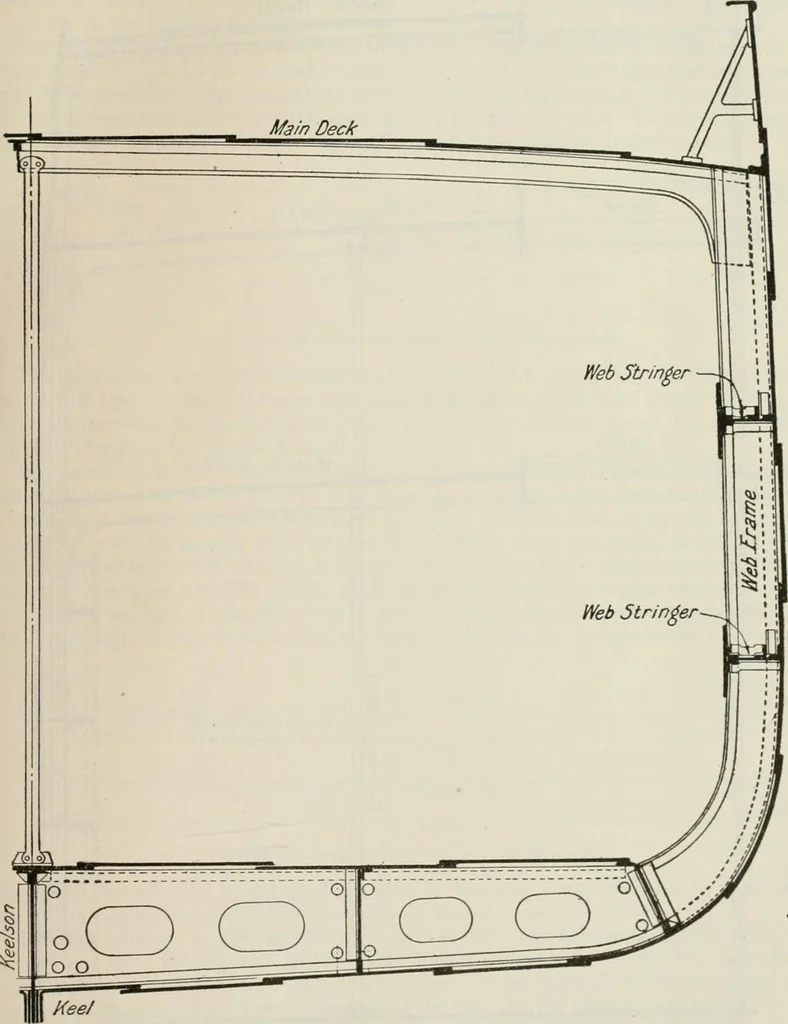

-18. (To facfl page it. MEASUKEMENT OF VESSELS FOR PANAMA CANAL. 17 tudinal wing girder at the upward bend of the frames, are crossed at right angles by the longi-tudinal side girders that parallel the keelson. The floors may be continuous from keelsonto margin plate and the side girders… … Figure 2.-Midship section of two-deck vessel. The second deck dispensed with, the vessel being civen compensattag slrcmrth by web frames lingers. Figure 3 is the drawing of a half cross-section of a three-deck vessel. The lower deck isomitted, and compensating strength is given the hull by…
Huebner, Grover Gerhardt, 1884 · Ships · Tonnage
