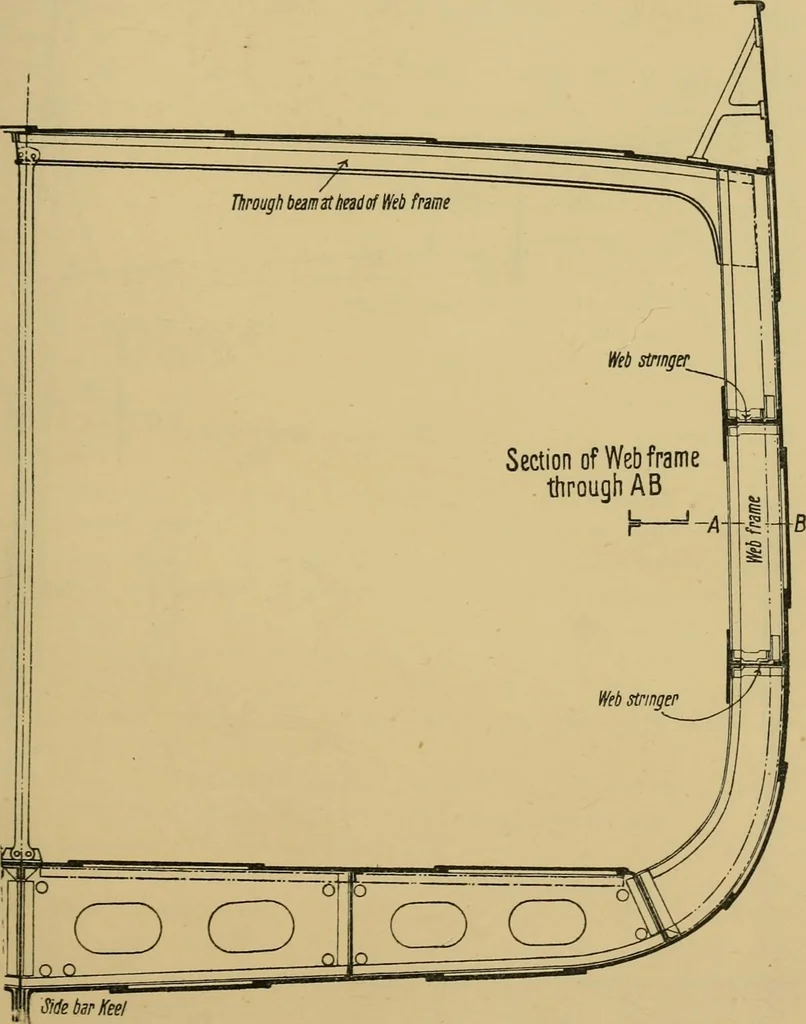

s of beams.But while the beams in the upper tier are placed on every frame (2 ft.apart), the beams in the lower tier, which are exceptionally strong, are only MODES OF SHIP CONSTRUCTION. 45 required on every tenth frame (20 ft. apart). The transverse framing,supporting the side shell plating, is… … Fig. 11.—Midship Section showing Hold Beams dispensed with, and Compensationin the form of Web Frames and Stringers introduced. the same vessel as shown in fig. 7, and is of exactly the^same dimensionsand external form as fig. 10. In this case, the vesselj has a side barkeel, and is fitted with a…
