Meccano 1912 (1912)

Meccano Limited · Meccano Limited · leaf 95

An illustration from Meccano 1912, 1912, leaf 95

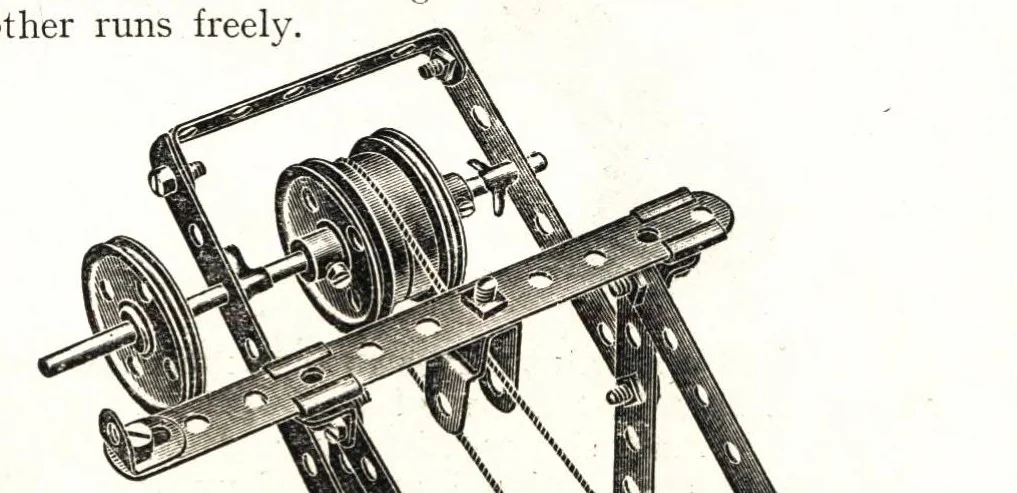

G— Method of operating a fast and loose pulley with a belt drive, one of the flanged wheels on the main shaft being secured whilst the … D—Method of lock- ing —_ swivelling ee h ss a ig we E— Pawl and Pinion or Ratchet with double nuts Gear ; used also as a brake.
