Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 452

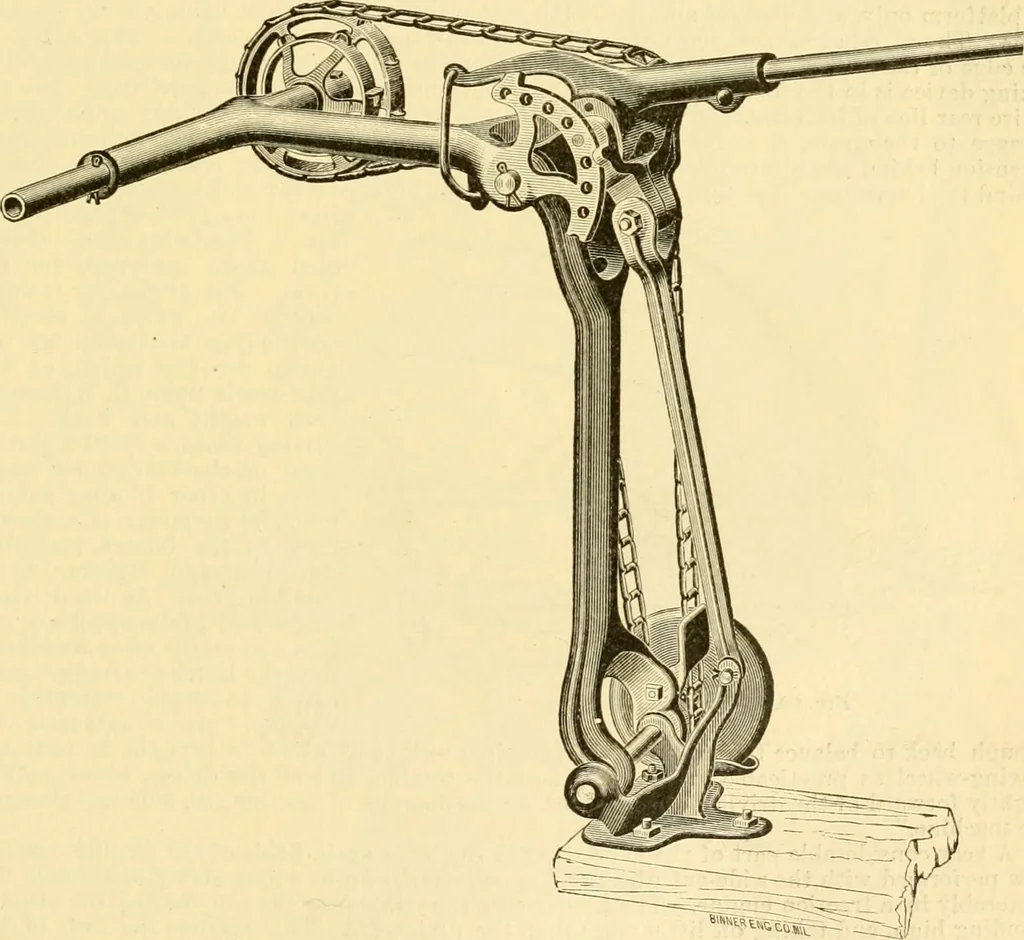

Fig. 47.—Shaughrans gear and adjusting device. The Milwaukee Harvester Co.s adjustable reel support (Fig. 48) has but one hand-lever,which locks the reel in any position forward or backward in the direction of its length, and … Fig. 48.—Milwaukee adjustable reel support. upward or downward when turned on its own axis by the operator. A lift-spring in the for-ward arm, not visible in the figure, sustains the weight of reel and forearm. Aultman, Miller & Co., of Ohio, make a binding-harvester (Fig. 49) in which the…
