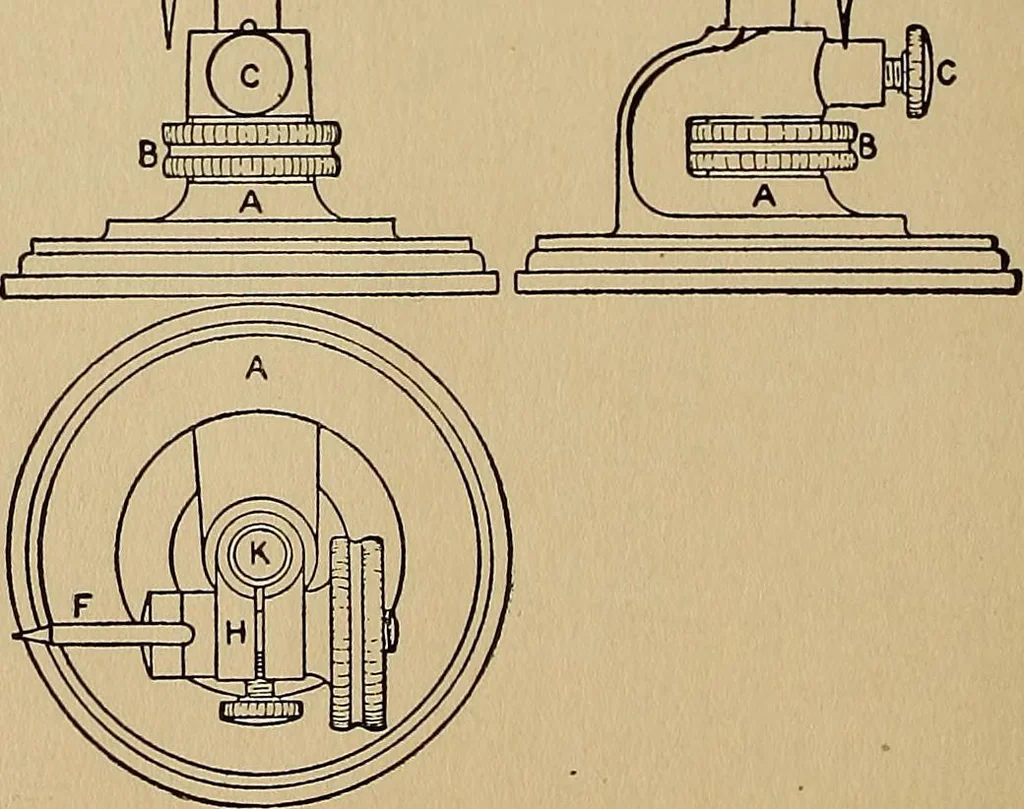

Fig. 174—Surface Gauge. MACHINE DRAWING 91 Example 15. 214-inch Steam or Water Cock. First draw the views of this cock shown in Fig.170, then draw a half end elevation and half crosssection through the center of the plug. Scale 6inches to 1 foot.
